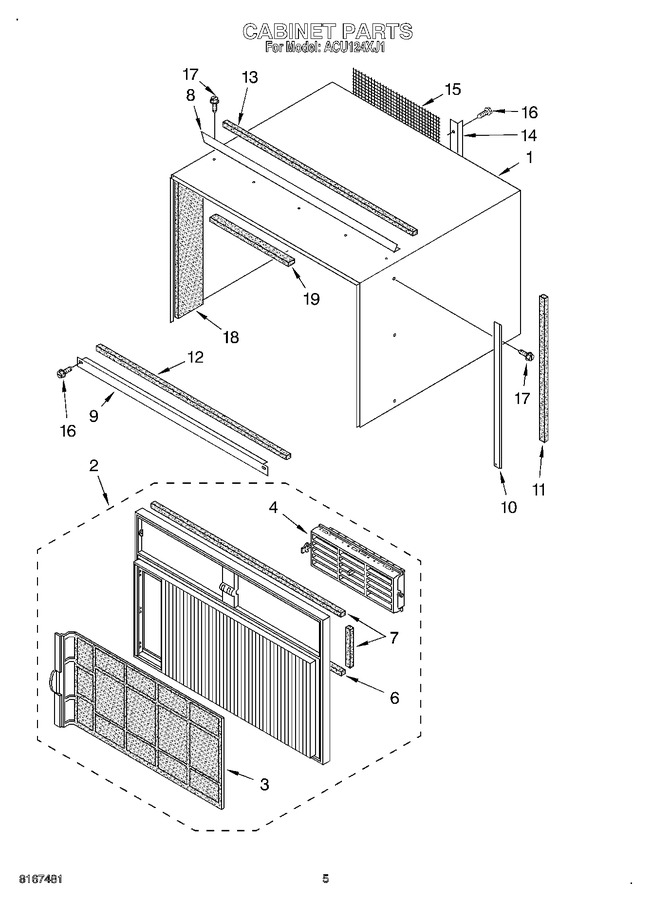

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789898		Cabinet Assembly (includes Insulation And Item No. 15)		Appelez-nous	-
2	789897		Front Assembly		Appelez-nous	-
3	789851		Filter, Air		Appelez-nous	-
6	789736		Seal, Front		Appelez-nous	-
7	789737		Seal, Front		Appelez-nous	-
8	789611		Frame And Foam Assembly (top)		Appelez-nous	-
9	789613		Frame And Foam Assembly (bottom)		Appelez-nous	-
10	789610		Frame And Foam Assembly (side) ((left Side))		Appelez-nous	-
10	789612		Frame And Foam Assembly (side) ((right Side))		Appelez-nous	-
11	WP854334		Seal, Strip (side Frame)   (Replaces: 789742)				$ 13.94
12	WP854334		Seal, Strip (bottom Frame)   (Replaces: 789740)				$ 13.94
13	WP854334		Seal, Strip (top Frame)   (Replaces: 789741)				$ 13.94
14	789615		Baffle, Condenser		Appelez-nous	-
15	789899		Guard, Wire		Appelez-nous	-
16	3148443		Screw No.8 X 1/4		Appelez-nous	-
17	4380603		Screw		Appelez-nous	-
18	789739		Insulation, Cabinet (side) ((left Side))		Appelez-nous	-
18	789738		Insulation, Cabinet (side) ((right Side))		Appelez-nous	-
19	4378882		Sleeve, Cabinet		Appelez-nous	-
19	1181046		Seal, Strip (top Rear)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
