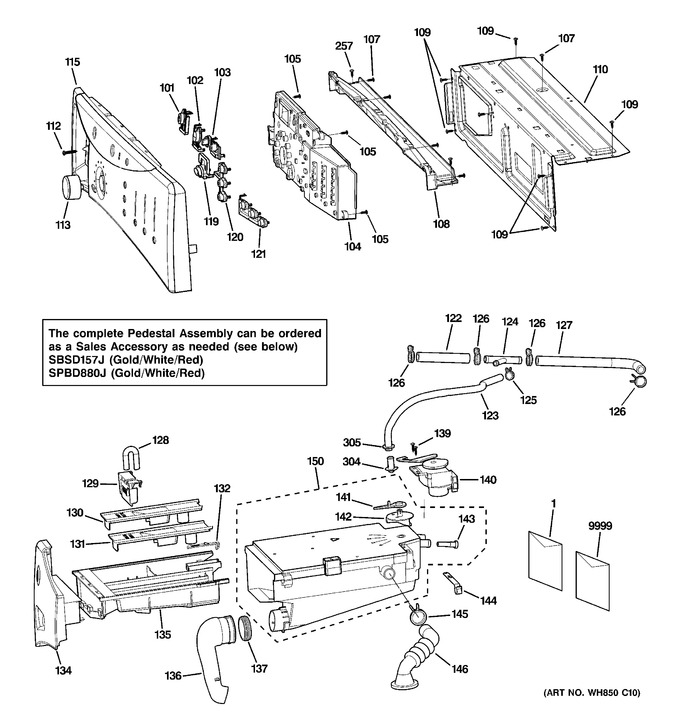

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90387 | Owner's Manual |
|
- | |||||
| 1 | 31-16559 | Mini Manual |
|
- | |||||
| 1 | 49-90315 | User Manual |
|
- | |||||
| 101 | WH01X10239 | Power Button |
|
- | |||||
| 102 | WH01X10240 | Start Pause Button |
|
- | |||||
| 103 | WH01X10241 | Child Lock Button |
|
- | |||||
| 104 | WH12X10453 | Control Board Asm |
|
- | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw St4*13 |
|
- | |||||
| 108 | WH16X10071 | Control_rear_cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2 X 13 |
|
- | |||||
| 110 | WH46X10122 | Front Top Bracket |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10054 | Select Cycle Knob |
|
- | |||||
| 113 | WH11X10056 | Select Cycle Knob |
|
- | |||||
| 115 | WH42X10810 | Control Panel Asm Mv |
|
- | |||||
| 115 | WH42X10766 | Control Panel Asm Bb |
|
- | |||||
| 115 | WH42X10769 | Control Panel Asm Mr |
|
- | |||||
| 115 | WH42X10770 | Control Panel Asm Ms |
|
- | |||||
| 115 | WH42X10771 | Control Panel Asm Ww |
|
- | |||||
| 119 | WH12X10304 | My-cycle_button |
|
- | |||||
| 120 | WH12X10305 | Rinse_button |
|
- | |||||
| 121 | WH12X10306 | Soil_speed_temp_button |
|
- | |||||
| 122 | WH41X10108 | Inlet_water_hose_1 |
|
- | |||||
| 123 | WH41X10109 | Spray_hose |
|
- | |||||
| 124 | WH41X10110 | 3_way_pipe |
|
- | |||||
| 125 | WH01X10243 | 3_way_pipe_clamp |
|
- | |||||
| 126 | WH01X10244 | 3_way_pipe_clamp |
|
- | |||||
| 127 | WH41X10111 | Inlet_water_hose |
|
- | |||||
| 128 | WH41X10112 | Siphon_pipe |
|
- | |||||
| 129 | WG04L01035 | Liquid_detergent_insert (Replaces: WH41X10113) |
|
$ 17.43 | |||||
| 130 | WG04F03682 | Bleach_cover (Replaces: WH41X10114) |
|
$ 8.22 | |||||
| 131 | WG04F03756 | Softener Cover (Replaces: WH41X10115) |
|
$ 8.22 | |||||
| 132 | WG04F00344 | Drawer Latch Level (Replaces: WH01X10245) |
|
$ 3.75 | |||||
| 134 | WG04F00284 | Dispenser Dwr Front Ww (Replaces: WH41X10177) |
|
$ 56.66 | |||||
| 134 | WH41X10173 | Dispenser Dwr Front Mr |
|
- | |||||
| 134 | WH41X10174 | Dispenser Dwr Front Bb |
|
- | |||||
| 134 | WH41X10176 | Dispenser Dwr Front Ms |
|
- | |||||
| 134 | WH41X10218 | Dispenser Dwr Front Mv |
|
- | |||||
| 135 | WG04F00341 | Drawer Dispenser (Replaces: WH41X10117) |
|
$ 46.10 | |||||
| 136 | WH41X10118 | Water_inlet_pipe |
|
- | |||||
| 137 | WH41X10119 | Dispenser_seal |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 140 | WG02F04592 | Diverter (Replaces: WH43X10031) |
|
Immediately | $ 165.97 | ||||
| 141 | WH01X10247 | Diverter_indicator |
|
- | |||||
| 142 | WH01X10248 | Diverter_level_plate |
|
- | |||||
| 143 | WH41X10121 | Dispenser_inlet |
|
- | |||||
| 144 | WH01X10249 | Dispenser_clamp |
|
- | |||||
| 145 | WH01X10250 | Dispenser_vent_hose_clam |
|
- | |||||
| 146 | WG04F00286 | Dispenser_vent_hose (Replaces: WH41X10122) |
|
$ 9.29 | |||||
| 150 | WH41X10120 | Main Box Diverter Asm |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 304 | WG04L00219 | Gasket_nozzle (Replaces: WH08X10021) |
|
$ 4.82 | |||||
| 305 | WG04L00220 | Gasket_nozzle_washer (Replaces: WH02X10206) |
|
$ 4.31 | |||||
| 9999 | WE25X10028 | Kit - Stacking Wsh/dry |
|
- |
