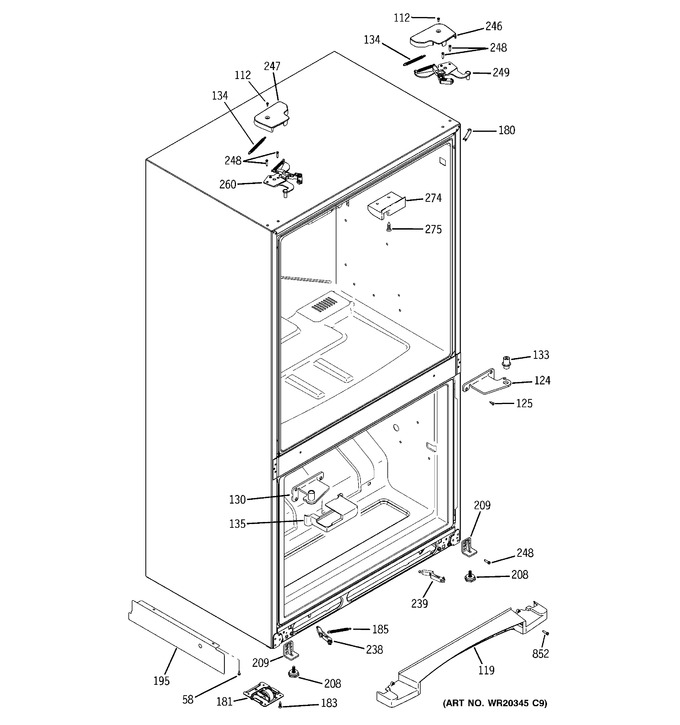

SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
58	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
112	WR01F03225		Screw Hinge Cover   (Replaces: WR01X10379)				$ 3.97
119	WR01L02279		Grille Base   (Replaces: WR74X10246)				$ 34.54
119	WR74X10263		Grille Base		Appelez-nous	-
124	WR13X10637		Hinge Center And Pin Asm		Appelez-nous	-
124	WR02X12910		Hinge Center And Pin Asm		Appelez-nous	-
125	WR01A00659		Scr 12-24 Tt Hxt20 .90 S   (Replaces: WR01X10690)				$ 6.09
125	WR01A00660		Scr 12-24 Tt Hxt20 .90 S   (Replaces: WR01X10683)				$ 4.20
130	WR01L02463		Hinge Center And Pin Asm   (Replaces: WR13X10632)				$ 33.71
130	WR13X10633		Hinge Center And Pin Asm		Appelez-nous	-
133	WR01A00465		Pin Hinge Adj Bm   (Replaces: WR01X10793)			Immediately	$ 33.35
134	WR01A00582		Spring Closure   (Replaces: WR01X10827)			Immediately	$ 4.17
135	WR01L00838		Cover Hinge   (Replaces: WR02X12887)				$ 18.66
135	WR01L00837		Cover Hinge   (Replaces: WR02X12913)				$ 17.01
180	WR01L01083		Cap Corner Oc Wh   (Replaces: WR02X10640)				$ 6.09
180	WR01L01085		Cap Corner Oc Bk   (Replaces: WR02X10781)				$ 4.20
181	WR02X12807		Mobility Front Asm		Appelez-nous	-
183	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
185	WG03F00903		Spring Closure   (Replaces: WR1X2027)				$ 68.16
195	WR17X12295		Separator Air Hiside		Appelez-nous	-
208	WR01X10850		Screw Leveling		Appelez-nous	-
209	WR01A00110		Bracket Leg Asm   (Replaces: WR02X12874)				$ 21.85
238	WR01F01564		Lever Arm Fz Closure Asm   (Replaces: WR11X10017)				$ 21.63
238	WR11X10019		Lever Arm Fz Closure Asm		Appelez-nous	-
239	WR01F01560		Lever Arm Fz Closure Asm   (Replaces: WR11X10018)				$ 18.49
239	WR01F01561		Lever Arm Fz Closure Asm   (Replaces: WR11X10016)				$ 30.18
246	WR01L00830		Cover Hinge Top   (Replaces: WR02X12885)				$ 11.55
246	WR02X12911		Cover Hinge Top		Appelez-nous	-
247	WR01L00834		Cover Hinge Top   (Replaces: WR02X12886)				$ 13.97
247	WR02X12912		Cover Hinge Top		Appelez-nous	-
248	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
249	WR01L02490		Hinge Closure Asm   (Replaces: WR13X10642)				$ 67.31
249	WR13X10643		Hinge Closure Asm		Appelez-nous	-
260	WR13X10644		Hinge Closure Asm		Appelez-nous	-
260	WR01L02488		Hinge Closure Asm   (Replaces: WR13X10634)				$ 68.88
274	WR01A00959		Striker Top   (Replaces: WR02X12884)				$ 18.49
275	WR01X10482		Scr 8-18a Fl Hd 5/8 Ss		Appelez-nous	-
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.97

    View Diagram in Separate Window       Print Part List
