Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 46-60543 Pm Guide Owners Appelez-nous -
1 31-51752 Pm Mini Manual Wiring Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
6 WR01A01440 Set Screw   (Replaces: WR01X10450) Special Order $ 9.53

7 WR12X10907 Tubulur Handle Asm Appelez-nous -
9 WR02X12390 Fastener Handle Ss Appelez-nous -
11 WR38X10416 Trim Recess Disp Bow Appelez-nous -
12 WR01A01018 Stop Door Black   (Replaces: WR02X10782) Special Order $ 39.70

14 WR01L08732 Gasket   (Replaces: WR24X10259) Special Order $ 65.51

14 WR01L08732 Gasket Door Fz Bk**   (Replaces: WR24X10158) Special Order $ 65.51

15 WR02X10780 Cam Closure Ff Black Appelez-nous -
23 WR01L00038 Module Shelf Fz Fixed   (Replaces: WR71X10254) Special Order $ 26.67

31 WR01L03203 Grille Recess Bk   (Replaces: WR17X11655) Special Order $ 31.76

36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 67.41

58 WR17X12784 Housing Shield Disp Appelez-nous -
61 WR2X9561 Lamp Socket Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR17X12786 Funnel Ice Disp Appelez-nous -
70 WR01A00435 Paddle Ice Disp Bk   (Replaces: WR17X12125) Special Order $ 31.76

72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X10801 Interface Dispenser Asm Appelez-nous -
122 WR01L02896 Module Shelf Fz   (Replaces: WR71X10291) Special Order $ 26.70

123 WR71X10501 Module Shelf Fz Fixed Appelez-nous -
854 WR23X10657 Harness Recess Disp Appelez-nous -
900 WR78X12188 Door Foam Asm Fz Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Blac Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10233 Thimble Door Top Black Appelez-nous -
911 WR01X10956 Thimble Door Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

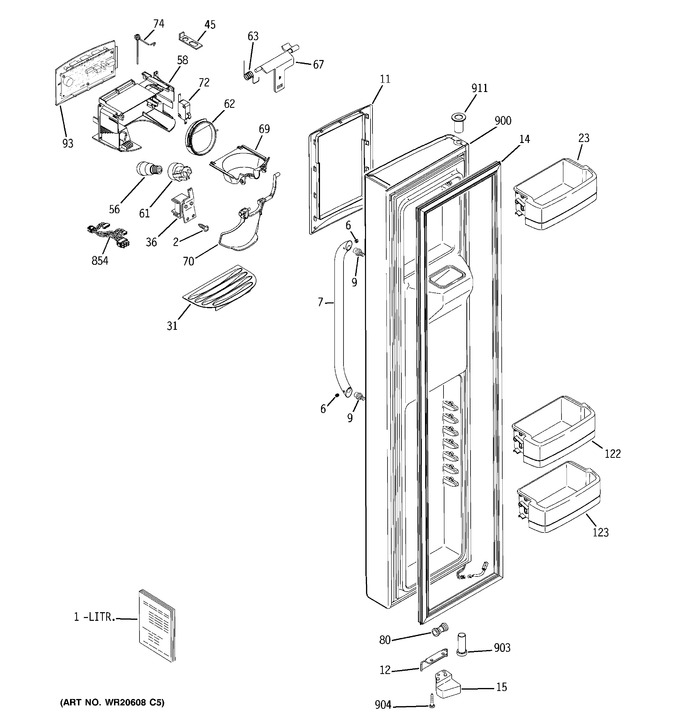

Diagram for GSHF5KGXGCBB
