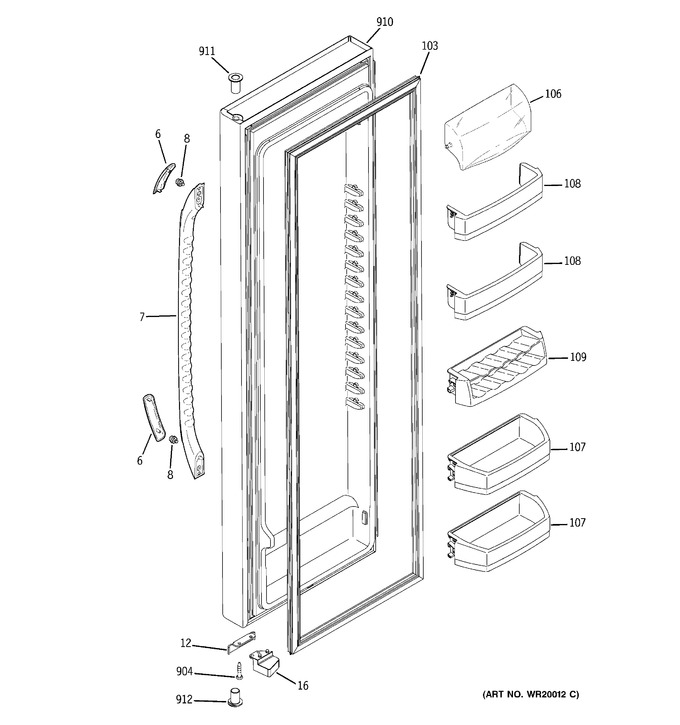

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10818		Cap Handle		Appelez-nous	-
6	WR01L00575		Cap Handle   (Replaces: WR12X10816)				$ 9.25
6	WR12X10817		Cap Handle		Appelez-nous	-
7	WR12X10823		Handle Sxs Door Bq		Appelez-nous	-
7	WR12X10812		Handle Sxs Door Bk		Appelez-nous	-
7	WR12X10811		Handle Sxs Door Wh		Appelez-nous	-
8	WR02X12255		Scr 5/16-18 Rnp		Appelez-nous	-
12	WR02X10649		Stop Door Wh		Appelez-nous	-
12	WR01A00225		Stop Door Bk   (Replaces: WR02X10814)				$ 12.40
12	WR02X10817		Stop Door Bq		Appelez-nous	-
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 32.88
103	WR24X10157		Gasket Door Ff Bk		Appelez-nous	-
103	WR24X10155		Gasket Door Ff Wh		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 20.64
107	WR01L01252		Door Bin Ff Adj   (Replaces: WR71X10642)				$ 69.21
108	WR01L00026		Shelf Module Fixed Ff   (Replaces: WR71X10641)				$ 59.40
109	WR71X10643		Rack Can		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X11634		Door Foam Asm Ff Wh		Appelez-nous	-
910	WR78X11633		Door Foam Asm Ff Bq		Appelez-nous	-
910	WR78X11630		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR01X10207		Thimble Door Top Wh		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-
912	WR01X10206		Thimble Door Btm Wh		Appelez-nous	-
912	WR01X10235		Thimble Door Btm Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
