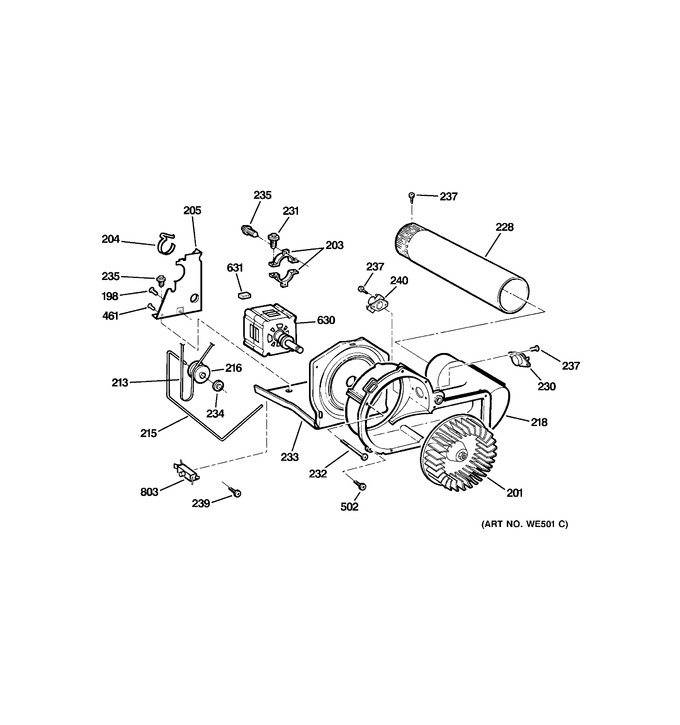

6 - Blower & Motor


7 - Gas Valve & Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
198	WE2M200		Screw Ground		Appelez-nous	-
201	WE16M17		Blower Wheel W/insert		Appelez-nous	-
203	WE13X200		Strap Motor		Appelez-nous	-
204	WE1X921		Strap Motor		Appelez-nous	-
205	WE13M39		Motor Support		Appelez-nous	-
213	WW02F00854		Belt Drive   (Replaces: WE12M29)			Immediately	$ 26.44
215	WW02A00060		Idler Arm Spring   (Replaces: WE3M25)				$ 11.34
216	WW02F00871		Idler Pulley   (Replaces: WE12M8)			Immediately	$ 5.36
218	WE1M473		Gasket Seal, Hsng Exh		Appelez-nous	-
218	WE14M94		Blower Housing Xtra Hole		Appelez-nous	-
228	WE14M107		Exhaust Duct		Appelez-nous	-
230	WG04F01199		T-stat , Outlet Bkup Org   (Replaces: WE4M300)				$ 10.99
231	WE2M187		Screw		Appelez-nous	-
232	WW02A00032		Screw   (Replaces: WE2M202)				$ 3.57
233	WE13M41		Motor Plate		Appelez-nous	-
234	WG04A00124		Cap Nut   (Replaces: WE2M96)				$ 9.11
235	WE2X263		Screw		Appelez-nous	-
237	WE2M154		Screw		Appelez-nous	-
239	WE2M167		Screw		Appelez-nous	-
240	WE4M336		Thermistor , Outlet Cntr		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
502	WW02A00031		Screw #10   (Replaces: WE2M174)			Immediately	$ 3.57
630	WE17M38		Motor Thrd & Pulley Asm		Appelez-nous	-
631	WE1M650		Connector Motor				$ 13.19
803	WW02F00249		Switch Interlock   (Replaces: WD21X557)			Immediately	$ 15.72
