View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

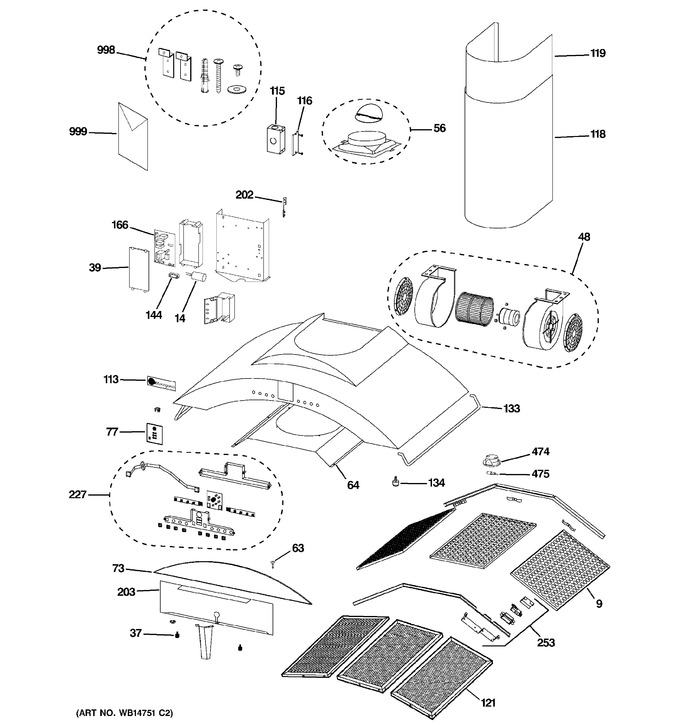

1 - Range Hood
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | WB02X11491 | Grease Filter |
|
- | |||||
| 14 | WB17X10032 | Capacitor With Wires |
|
- | |||||
| 37 | WB03X10002 | Thumb Screw |
|
- | |||||
| 39 | WG02F02052 | Cover (Replaces: WB02X10889) |
|
$ 70.75 | |||||
| 48 | WB26X10232 | Blower Assembly |
|
- | |||||
| 56 | WB02X11328 | Connection Air Outlet Se |
|
- | |||||
| 63 | WB01X10266 | Plastic Screw, Visor |
|
- | |||||
| 64 | WB02X11375 | Blower Bottom Bracket |
|
- | |||||
| 73 | WB07X10007 | Glass Visor |
|
- | |||||
| 77 | WB02X10642 | Plexiglass Display Cover |
|
- | |||||
| 113 | WB02X11489 | Logo |
|
- | |||||
| 115 | WB02X11490 | Junction Box |
|
- | |||||
| 116 | WB59X10006 | Cover |
|
- | |||||
| 118 | WB38X10138 | Bottom Duct Cover |
|
- | |||||
| 119 | WB38X10139 | Upper Duct Cover |
|
- | |||||
| 121 | WG02F00524 | Recirculating Kit (Replaces: WB02X10731) |
|
$ 158.38 | |||||
| 133 | WB03X10092 | Implement Holder |
|
- | |||||
| 134 | WB01X10170 | Implement Holder Screws |
|
- | |||||
| 144 | WB02X10398 | Strain Relief |
|
- | |||||
| 166 | WB27X11076 | Control Board |
|
- | |||||
| 202 | WB02X10401 | Strain Relief |
|
- | |||||
| 203 | WB07X11267 | Blocking Bracket |
|
- | |||||
| 227 | WB27X11077 | Switch Box Assembly |
|
- | |||||
| 253 | WB24X10179 | Microswitch Assembly |
|
- | |||||
| 474 | WG02F02726 | Halogen Lamp Assy (Replaces: WB08X10061) |
|
$ 190.39 | |||||
| 475 | WG02F05223 | Bulb (Replaces: WB25X10020) |
|
$ 132.61 | |||||
| 998 | WB01X10403 | Installation Hardware |
|
- | |||||
| 999 | 49-80569 | Use And Care Manual |
|
- | |||||
| 999 | 31-14783 | Mini-manual |
|
- | |||||
| 999 | 31-10724 | Installation Instruction |
|
- | |||||
| WG02F02842 | Blower Assembly |
|
$ 532.90 | ||||||
| WG02F05223 | Bulb |
|
$ 132.61 |
