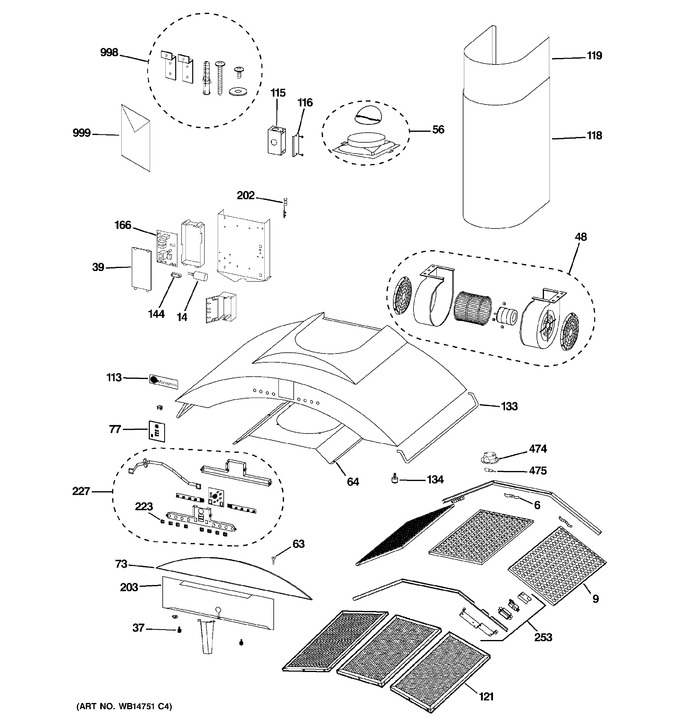

1 - Range Hood


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WB09X10029		Spring		Appelez-nous	-
9	WB02X11491		Grease Filter		Appelez-nous	-
14	WB17X10033		Capacitor With Wires		Appelez-nous	-
37	WB03X10002		Thumb Screw		Appelez-nous	-
39	WG02F02052		Cover   (Replaces: WB02X10889)				$ 70.75
48	WB26X10237		Blower Assembly		Appelez-nous	-
56	WB02X11493		Connection Air Outlet Se		Appelez-nous	-
63	WB01X10266		Plastic Screw, Visor		Appelez-nous	-
64	WB02X11375		Blower Bottom Bracket		Appelez-nous	-
73	WB07X10007		Glass Visor		Appelez-nous	-
77	WB02X10642		Plexiglass Display Cover		Appelez-nous	-
113	WB02X11489		Logo		Appelez-nous	-
115	WB02X11490		Junction Box		Appelez-nous	-
116	WB59X10006		Cover		Appelez-nous	-
118	WB38X10138		Bottom Duct Cover		Appelez-nous	-
119	WB38X10139		Upper Duct Cover		Appelez-nous	-
121	WG02F00524		Recirculating Kit   (Replaces: WB02X10731)				$ 158.38
133	WB03X10092		Implement Holder		Appelez-nous	-
134	WB01X10170		Implement Holder Screws		Appelez-nous	-
144	WB02X10398		Strain Relief		Appelez-nous	-
166	WB27X11076		Control Board		Appelez-nous	-
202	WB02X10401		Strain Relief		Appelez-nous	-
203	WB07X11267		Blocking Bracket		Appelez-nous	-
223	WB03X10149		Switch Botton		Appelez-nous	-
227	WB27X11077		Switch Box Assembly		Appelez-nous	-
253	WB24X10179		Microswitch Assembly		Appelez-nous	-
474	WG02F02726		Halogen Lamp Assy   (Replaces: WB08X10061)				$ 190.39
475	WG02F05223		Bulb   (Replaces: WB25X10020)				$ 132.61
998	WB01X10403		Installation Hardware		Appelez-nous	-
999	49-80569		Use And Care Manual		Appelez-nous	-
999	31-14783		Mini-manual		Appelez-nous	-
999	31-10724		Installation Instruction		Appelez-nous	-
999	31-10726		Mounting Template		Appelez-nous	-
	WG02L03789		Upper Duct Cover				$ 606.51
	WG02F02726		Halogen Lamp Assy				$ 190.39
	WG02F05223		Bulb				$ 132.61
	WG02L03788		Bottom Duct Cover				$ 383.11
