SELECT A DIAGRAM

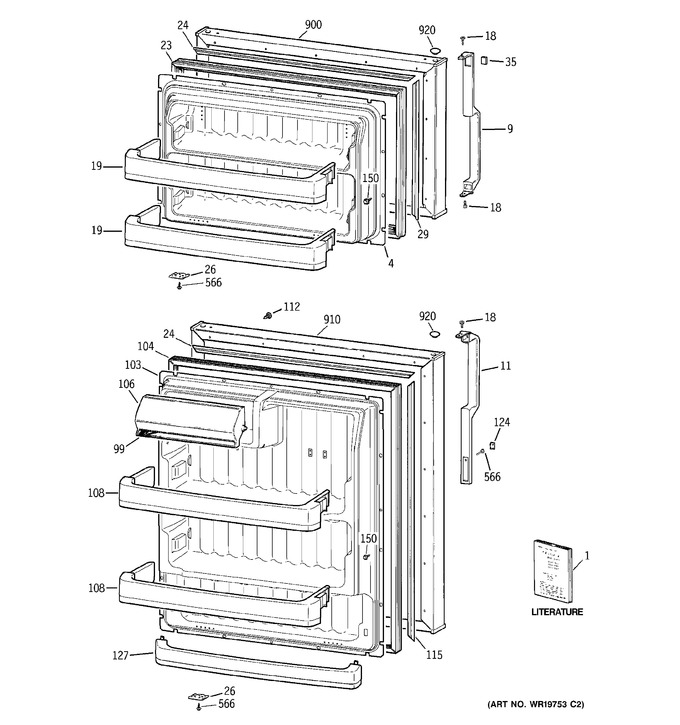

1 - Doors
2 - Cabinet
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51617 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60512 | Pm Guide Owners |
|
- | |||||
| 4 | WR77X10071 | Door Inner Fz |
|
- | |||||
| 9 | WR12X10717 | Handle Door Asm Fz Bq |
|
- | |||||
| 9 | WR12X10453 | Handle Door Asm Fz |
|
- | |||||
| 9 | WG03L00751 | Handle Door Asm Fz Wh (Replaces: WR12X10714) |
|
$ 66.80 | |||||
| 11 | WG03L00750 | Handle Door Ff Wh (Replaces: WR12X10710) |
|
$ 58.86 | |||||
| 11 | WR12X10712 | Handle Door Ff Bq |
|
- | |||||
| 18 | WR1X1726 | Scr 10-16ab Fwr 3/4 Ss |
|
- | |||||
| 19 | WG03F01622 | Shelf Fixed Fz (Replaces: WR17X11890) |
|
Immediately | $ 50.92 | ||||
| 23 | WG03L00640 | Gasket Door Fz (Replaces: WR24X10228) |
|
Immediately | $ 152.19 | ||||
| 24 | WR2X8235 | Retainer Strip H |
|
- | |||||
| 26 | WR02X12212 | Stop Door |
|
- | |||||
| 29 | WR2X8236 | Retainer Strip V |
|
- | |||||
| 35 | WG03F01617 | Lens Nameplate Wh (Replaces: WR04X10028) |
|
$ 4.37 | |||||
| 35 | WR02X10708 | Lens Nameplate Bq |
|
- | |||||
| 99 | WR38X10001 | Trim Bright |
|
- | |||||
| 103 | WR77X10075 | Door Inner Ff |
|
- | |||||
| 104 | WG03L01327 | Gasket Door Ff (Replaces: WR24X10236) |
|
Immediately | $ 161.33 | ||||
| 106 | WG03L00721 | Door Dairy (Replaces: WR22X10068) |
|
$ 83.70 | |||||
| 108 | WG03F01597 | Shelf Fixed Ff (Replaces: WR17X11889) |
|
Immediately | $ 76.28 | ||||
| 112 | WR02X10459 | Plug Door Rvsbl Bq |
|
- | |||||
| 115 | WR2X9221 | Retainer Strip V |
|
- | |||||
| 124 | WR12X721 | Plug Button Insert Wh |
|
- | |||||
| 124 | WR12X10452 | Plug Button Insert Bq |
|
- | |||||
| 127 | WG03L01567 | Shelf Fixed Ff (Replaces: WR17X11911) |
|
$ 67.82 | |||||
| 150 | WR1X1791 | Scr 8-15 Spec |
|
- | |||||
| 566 | WR1X1728 | Scr 10-16 1/2 Ph |
|
- | |||||
| 900 | WR78X10471 | Door Foam Asm Fz Bq |
|
- | |||||
| 900 | WR78X10335 | Door Foam Asm Fz Wh |
|
- | |||||
| 910 | WG03L01287 | Door Foam Asm Ff Wh (Replaces: WR78X10336) |
|
$ 502.57 | |||||
| 910 | WR78X10473 | Door Foam Asm Ff Bq |
|
- | |||||
| 920 | WR2X8233 | Plug Button Wh |
|
- | |||||
| 920 | WR02X10850 | Plug Button Thimble Bq |
|
- |
