SELECT A DIAGRAM

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Fresh Food Door
2 - Fresh Food Door

Diagram for 3 - Freezer Section
3 - Freezer Section

Diagram for 4 - Evaporator Instructions
4 - Evaporator Instructions

Diagram for 5 - Freezer Shelves
5 - Freezer Shelves

Diagram for 6 - Ice Maker & Dispenser
6 - Ice Maker & Dispenser

Diagram for 7 - Fresh Food Section
7 - Fresh Food Section

Diagram for 8 - Fresh Food Shelves
8 - Fresh Food Shelves

Diagram for 9 - Sealed System & Mother Board
9 - Sealed System & Mother Board


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-46223 Pm Mini Wiring Manual Appelez-nous -
1 49-60485 Pm Guide Owners Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
7 WR12X10432 Handle Sxs Asm Bq Appelez-nous -
11 WR38X10356 Trim Recess Disp Bow Appelez-nous -
12 WR02X10786 Stop Door Bq Appelez-nous -
14 WR01L02185 Gasket Door Fz Wh   (Replaces: WR24X10156) Special Order $ 62.92

15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
23 WR01L00038 Module Shelf Fz Fixed   (Replaces: WR71X10254) Special Order $ 26.67

31 WR17X11656 Grille Recess Bq Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 80.09

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 60.67

58 WR17X12818 Housing Shield Disp Appelez-nous -
61 WR2X9561 Lamp Socket Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 58.69

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.57

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 11.44

69 WR17X12819 Funnel Ice Disp Appelez-nous -
70 WR17X12128 Paddle Ice Disp Bq Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 15.72

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 21.44

80 WR01F02845 Union Connector Reg   (Replaces: WR02X11330) In-Stock Immediately $ 17.15

93 WR55X10275 Interface Disp Asm Bq Appelez-nous -
121 WR12X10431 Trim Handle Lower Bq Appelez-nous -
122 WR01L02896 Module Shelf Fz   (Replaces: WR71X10291) Special Order $ 24.03

123 WR71X10501 Module Shelf Fz Fixed Appelez-nous -
152 WR01X10620 Scr 10-32 Ca Hxws 9/16 S Appelez-nous -
154 WR01X10624 Scr 8-18 Appelez-nous -
155 WR02X10643 Bracket Handle Lock Appelez-nous -
158 WR02X10646 Tail Mtng Hndl Retnr Appelez-nous -
854 WR23X10657 Harness Recess Disp Appelez-nous -
900 WR78X11591 Door Foam Asm Fz Bq Appelez-nous -
903 WR01X10237 Thimble Door Btm Fz Bq Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10236 Thimble Door Top Bq Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

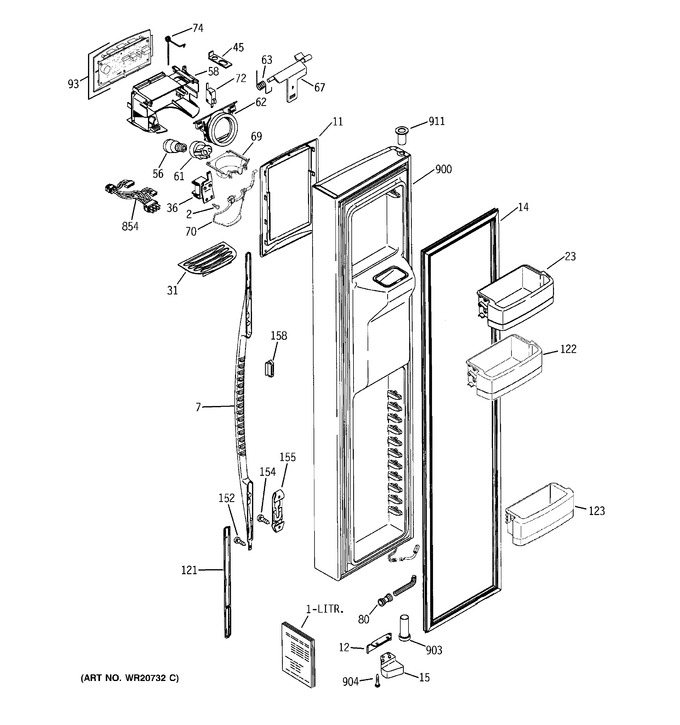

Diagram for HSK27MGWJCCC
