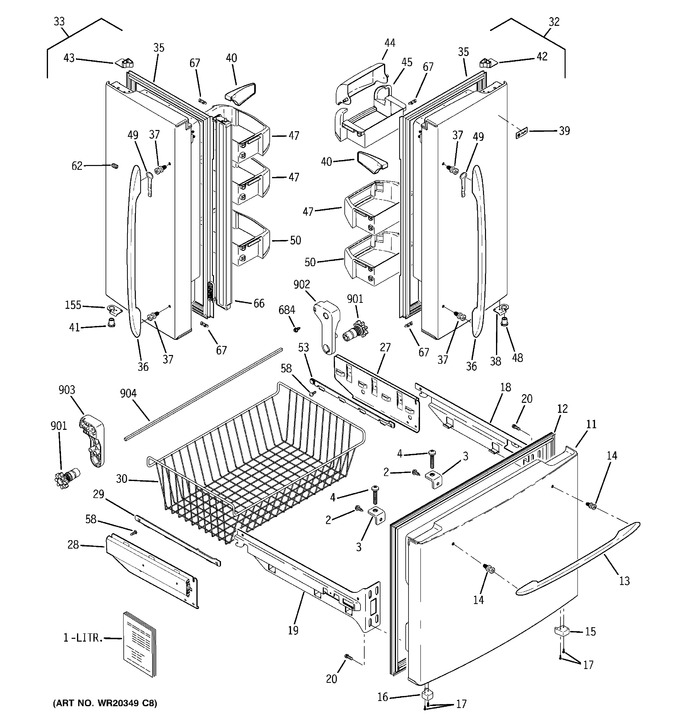

SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Freezer Shelves


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Case Parts


7 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60603		Guide Owner		Appelez-nous	-
1	31-51798		Pm Mini Wiring Manual		Appelez-nous	-
2	WR01X10844		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
3	WR02X12870		Bracket Support		Appelez-nous	-
4	WR01X10843		Screw Bracket Support		Appelez-nous	-
11	WR01L01838		Door Foam Fz Asm   (Replaces: WR78X12640)				$ 337.15
11	WR78X12637		Door Foam Fz Asm		Appelez-nous	-
12	WR01L02075		Gasket   (Replaces: WR14X10326)				$ 159.41
12	WR14X10324		Gasket		Appelez-nous	-
13	WR01A00338		Handle Plastic Fz Asm   (Replaces: WR12X10931)				$ 160.09
13	WR01A00337		Handle Plastic Fz Asm   (Replaces: WR12X10934)				$ 126.55
14	WR01A00257		Fastener Handle Ss   (Replaces: WR01X10680)				$ 15.78
15	WR02X12361		Cam Closure Fz Rh		Appelez-nous	-
15	WR02X12408		Cam Closure Fz Rh		Appelez-nous	-
16	WR02X12362		Cam Closure Fz Lh		Appelez-nous	-
16	WR02X12409		Cam Closure Fz Lh		Appelez-nous	-
17	WR01X10582		Scr 10-16		Appelez-nous	-
18	WR72X10299		Bracket Lower		Appelez-nous	-
19	WR72X10300		Bracket Lower		Appelez-nous	-
20	WR01A00633		Scr 1/4-20 Rt Flat 3/4 S   (Replaces: WR01X10885)				$ 3.97
27	WR01A01809		Slide Holder Asm   (Replaces: WR72X10297)			Immediately	$ 207.71
28	WR01A01809		Slide Holder Asm   (Replaces: WR72X10298)			Immediately	$ 207.71
29	WR02X12898		Holder Basket		Appelez-nous	-
30	WR21X10182		Basket Lower		Appelez-nous	-
32	WR78X12638		Door Foam Ff Asm		Appelez-nous	-
32	WR78X12642		Door Foam Ff Asm		Appelez-nous	-
33	WR01L01774		Door Foam Ff Asm   (Replaces: WR78X12641)				$ 273.34
33	WR78X12639		Door Foam Ff Asm		Appelez-nous	-
35	WR14X10327		Gasket French		Appelez-nous	-
35	WR14X10325		Gasket French		Appelez-nous	-
36	WR12X10847		Handle Ff Asm		Appelez-nous	-
36	WR12X10860		Handle Ff Asm		Appelez-nous	-
37	WR01A00256		Fastener Handle Ss   (Replaces: WR01X10681)				$ 7.35
38	WR02X12899		Stop Door		Appelez-nous	-
38	WR02X12908		Stop Door		Appelez-nous	-
39	WR01L02772		Lens Name Plate   (Replaces: WR04X10161)				$ 12.31
40	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 31.76
41	WR02X12903		Thimble Door Plastic		Appelez-nous	-
41	WR02X12914		Thimble Door Plastic		Appelez-nous	-
42	WR02X12412		Cam Ff Closure Rh		Appelez-nous	-
42	WR02X12359		Cam Ff Closure Rh		Appelez-nous	-
43	WR01L00494		Cam Ff Closure Lh   (Replaces: WR02X12360)				$ 20.65
43	WR02X12413		Cam Ff Closure Lh		Appelez-nous	-
45	WR01L00671		Compartment Dairy Asm   (Replaces: WR71X10950)				$ 84.76
47	WR71X10948		Shelf Module Asm		Appelez-nous	-
48	WR02X12411		Thimble Door Ff		Appelez-nous	-
48	WR01A00988		Thimble Door Ff   (Replaces: WR02X12363)				$ 15.54
49	WR02X12022		Lever Lock Handle		Appelez-nous	-
50	WR01L04316		Shelf Module Asm   (Replaces: WR71X10949)				$ 66.14
53	WR01L02537		Holder Basket   (Replaces: WR02X12897)				$ 15.88
58	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
62	WS01F02074		Set Screw   (Replaces: WR02X11754)				$ 15.44
66	WR17X12851		Mullion Articulation Asm		Appelez-nous	-
66	WR17X12850		Mullion Articulation Asm		Appelez-nous	-
67	WR02X12934		Bumper French Door		Appelez-nous	-
67	WR01A00157		Bumper French Door   (Replaces: WR02X13049)				$ 3.97
155	WR02X12909		Stop Door		Appelez-nous	-
155	WR02X12900		Stop Door		Appelez-nous	-
684	WR01X10252		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
901	WR01L04645		Wheel Sprocket   (Replaces: WR02X12904)				$ 9.92
902	WR01A00011		Arm Wheel Sprocket   (Replaces: WR02X12905)				$ 17.47
903	WR01A00012		Arm Wheel Sprocket   (Replaces: WR02X12906)				$ 10.22
904	WR02X12941		Axle Wheel Sprocket		Appelez-nous	-
