SELECT A DIAGRAM

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Fresh Food Door
2 - Fresh Food Door

Diagram for 3 - Freezer Section
3 - Freezer Section

Diagram for 4 - Evaporator Instructions
4 - Evaporator Instructions

Diagram for 5 - Freezer Shelves
5 - Freezer Shelves

Diagram for 6 - Ice Maker & Dispenser
6 - Ice Maker & Dispenser

Diagram for 7 - Fresh Food Section
7 - Fresh Food Section

Diagram for 8 - Fresh Food Shelves
8 - Fresh Food Shelves

Diagram for 9 - Sealed System & Mother Board
9 - Sealed System & Mother Board


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-51662 Pm Mini Wiring Manual Appelez-nous -
1 46-60543 Pm Guide Owners Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
6 WR01A01440 Set Screw   (Replaces: WR01X10450) Special Order $ 9.53

7 WR01L04604 Tubulur Handle Asm   (Replaces: WR12X10855) Special Order $ 62.89

9 WR02X12390 Fastener Handle Ss Appelez-nous -
11 WR38X10425 Trim Asm Appelez-nous -
12 WR01A01018 Stop Door Bk   (Replaces: WR02X10782) Special Order $ 39.70

14 WR24X10172 Gasket Appelez-nous -
15 WR02X10780 Cam Closure Fz Bk Appelez-nous -
31 WR01L02251 Grille Recess   (Replaces: WR17X12324) Special Order $ 13.97

36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 67.41

58 WR17X12771 Housing Shield Disp Appelez-nous -
61 WR2X9561 Lamp Socket Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WR02X12059 Spring Recess Door Appelez-nous -
67 WR01L00934 Crank Door Recess   (Replaces: WR17X11953) Special Order $ 17.01

69 WR17X12770 Funnel Ice Disp Appelez-nous -
70 WR17X12494 Paddle Ice Disp Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector Reg   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X10788 Interface Dispenser Asm Appelez-nous -
122 WR71X10649 Module Shelf Fz Fixed Appelez-nous -
123 WR71X10650 Module Shelf Fz Appelez-nous -
854 WR23X10657 Harness Recess Disp Appelez-nous -
900 WR78X12423 Service Kit Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Bk Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10233 Thimble Door Top Bk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

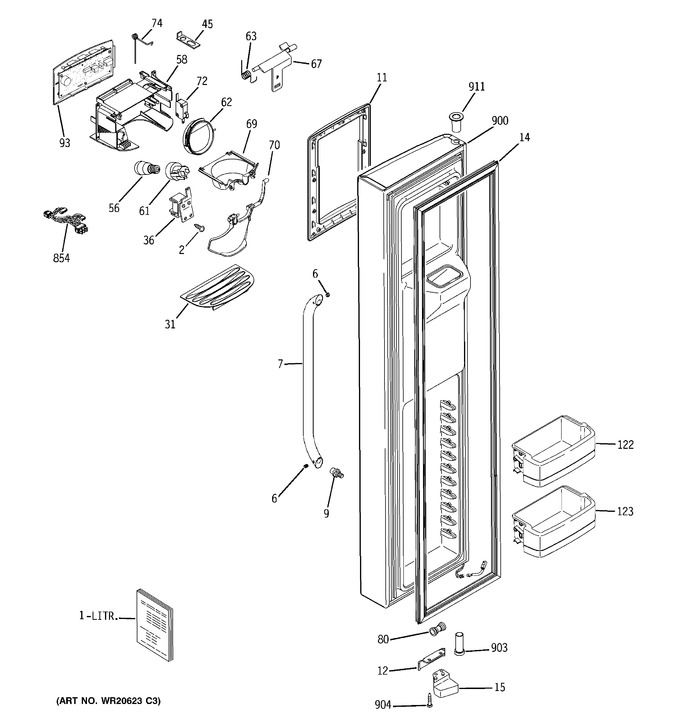

Diagram for GSHS3KGXHCSS
