Diagram # Part Number Description Series Availability Ships Price Add to Cart
44 WE20M273 Cover Top Appelez-nous -
236 WW02L00244 Leveling Foot   (Replaces: WE1M771) Special Order $ 9.29

402 WE2M171 Speednut Appelez-nous -
404 WE20M393 Side Panel Appelez-nous -
405 WE2M223 Screw Appelez-nous -
408 WE20M398 Cabinet Base Appelez-nous -
410 WE1M782 Brkt & Lvl Leg Asm Frnt Appelez-nous -
410 WE1M781 Front Bracket Level Leg Appelez-nous -
410 WE1M772 Bracket Levelling Leg Appelez-nous -
411 WE1M773 Brkt & Lvl Leg Asm Rear Special Order $ 37.94

420 WE20M399 Rear Panel 6 Cu. Ft. Appelez-nous -
421 WE26M341 Cord Set - Gas Appelez-nous -
422 WE1M155 Cord Clip Appelez-nous -
456 WE1X617 Pipe Clamp Appelez-nous -
484 WE2M172 Screw 8-18 X 1 13/16" Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

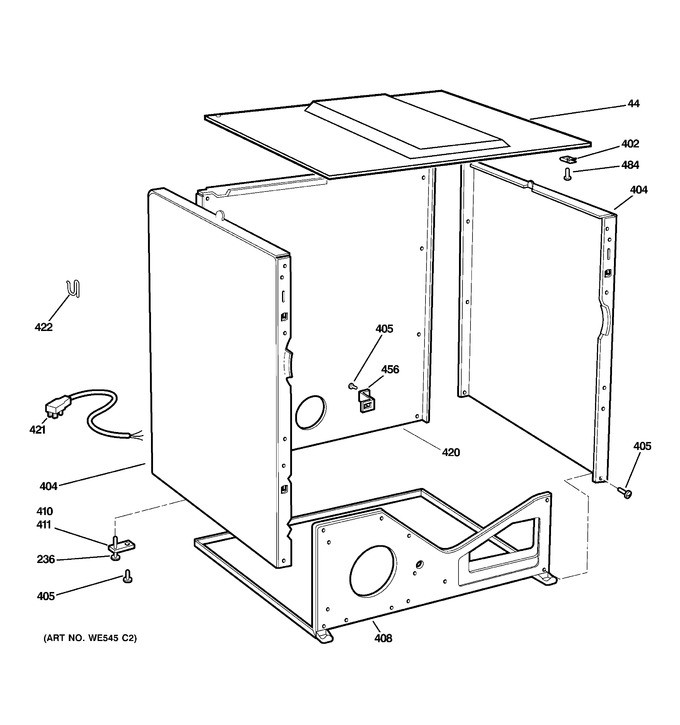

Diagram for DDC4500T4WH
