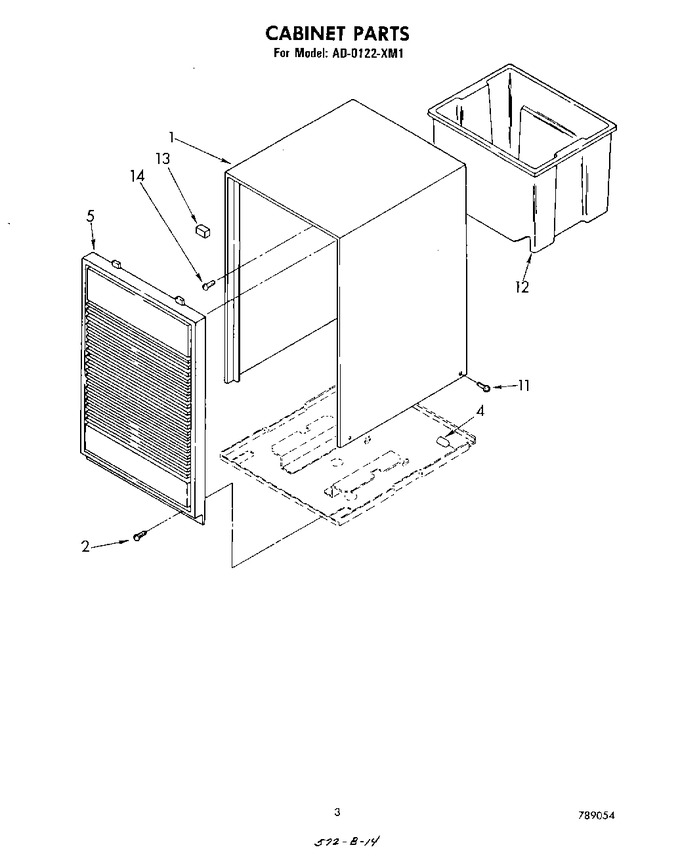

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998820 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, St 8-32 X 1/2 (2) (Replaces: 489120) |
|
$ 22.22 | |||||
| 4 | 998869 | Cap, Thread Cover (2) |
|
- | |||||
| 5 | 950385 | Grille, Front |
|
- | |||||
| 11 | 489016 | Screw, Tc 8-32 X 3/8 (4) |
|
- | |||||
| 12 | 998801 | Pan, Condensate |
|
- | |||||
| 13 | 948584 | Spacer, Grille |
|
- | |||||
| 14 | 789054 | List, Repair Parts |
|
- | |||||
| 14 | WP16123 | Washer, Cap (condensate Pan) (Replaces: 647338) |
|
$ 8.16 | |||||
| 14 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 14 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 14 | 505168 | Tape, No Drip |
|
- | |||||
| 14 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 14 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 14 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 14 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 14 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 14 | 950667 | Sheet, Service Tech |
|
- | |||||
| 14 | 998866 | Guide, Use & Care |
|
- | |||||
| 14 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 14 | WP488729 | Screw, Sm No.8 X 32 (2) (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 14 | 646753 | Cap, Condensate Pan |
|
- |
