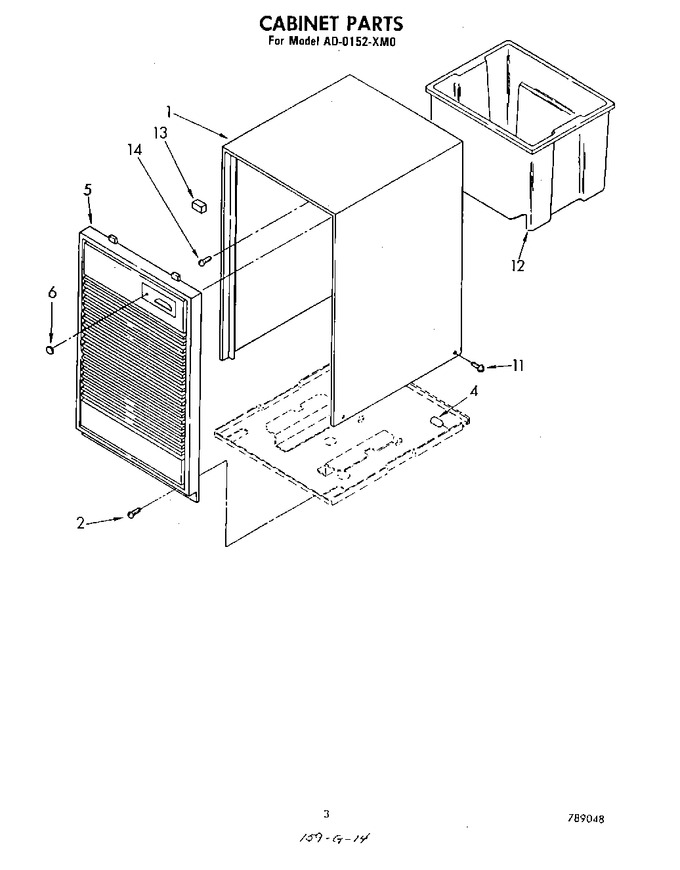

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998821		Cabinet		Appelez-nous	-
2	WPW10141625		Screw, 8-32 X 3/8 (2)   (Replaces: 489104)				$ 22.22
4	998869		Cap, Thread Cover (2)		Appelez-nous	-
5	950269		Grille, Front		Appelez-nous	-
6	998846		Lens, Light		Appelez-nous	-
11	489016		Screw, Tc 8-32 X 3/8 (4)		Appelez-nous	-
12	998801		Pan, Condensate		Appelez-nous	-
13	948584		Spacer, Grille		Appelez-nous	-
14	789048		List, Repair Parts		Appelez-nous	-
14	646753		Cap, Condensate Pan		Appelez-nous	-
14	WP16123		Washer, Cap (condensate Pan)   (Replaces: 647338)				$ 8.16
14	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
14	799351		Thinner (1 Gal.)		Appelez-nous	-
14	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
14	505168		Tape, No Drip		Appelez-nous	-
14	978026		Valve, Access (5/16``)			Immediately	$ 134.49
14	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
14	978028		Valve, Access (1/2)		Appelez-nous	-
14	978029		Valve Access (5/8``)				$ 93.85
14	978030		Valve, Access (3/4``)				$ 137.25
14	998866		Guide, Use & Care		Appelez-nous	-
14	950626		Sheet, Tech (service Information)		Appelez-nous	-
14	950628		Guide, Use & Care		Appelez-nous	-
14	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
14	WP488729		Screw, Sm No.8 X 32 (2)   (Replaces: 489073)			Immediately	$ 8.28
