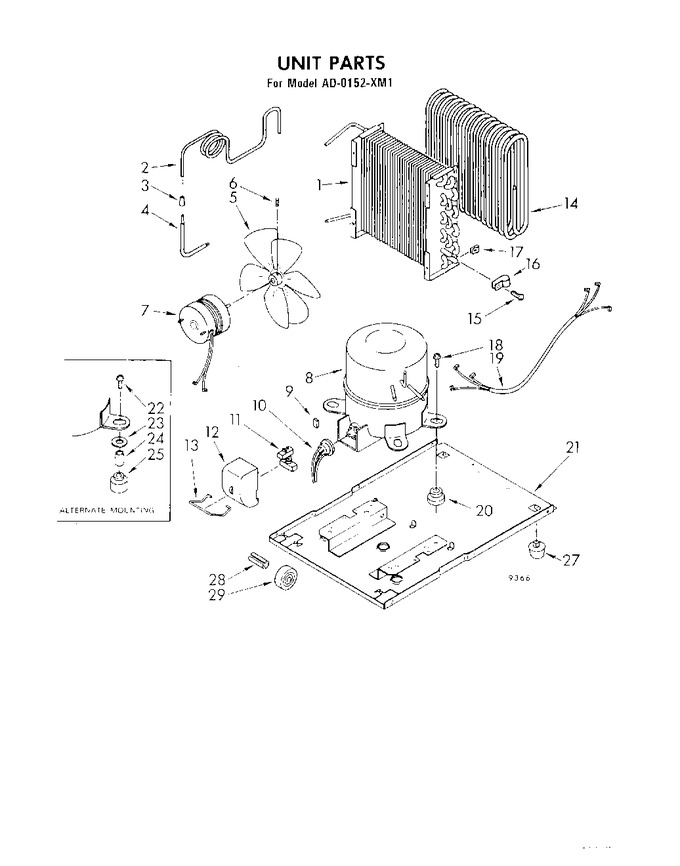

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949893		Condenser		Appelez-nous	-
2	948793		Tube, Restrictor (35.0`` Length)		Appelez-nous	-
3	474013		Strainer, Outlet Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes Item No. 3)		Appelez-nous	-
5	948756		Blade, Fan (includes Setscrew Item No. 6)		Appelez-nous	-
6	488035		Setscrew, 1/4 X 5/16		Appelez-nous	-
7	949635		Motor, Fan		Appelez-nous	-
8	484344		Compressor		Appelez-nous	-
9	547272		Bumper, Start Relay		Appelez-nous	-
10	998784		Overload, Start Relay		Appelez-nous	-
11	4318083		Relay, Start   (Replaces: 531386)				$ 123.05
12	549945		Case, Start Relay		Appelez-nous	-
13	531318		Spring, Relay Case		Appelez-nous	-
14	995082		Evaporator		Appelez-nous	-
15	WP488729		Screw, 8 X 3/8 (4)   (Replaces: 487910)			Immediately	$ 7.79
16	488946		Clamp, Tube (4)				$ 20.45
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	531082		Grommet (4)		Appelez-nous	-
21	998720		Base		Appelez-nous	-
22	489027		Xscrew, 1/4-28 X 1-1/4		Appelez-nous	-
23	489030		Xwasher, Cup		Appelez-nous	-
24	858424		Xsleeve		Appelez-nous	-
25	469581		Xgrommet		Appelez-nous	-
27	998725		Glide (2)		Appelez-nous	-
28	489015		Roll Pin (2)		Appelez-nous	-
29	998726		Roller (2)		Appelez-nous	-
