1 - Control Assembly
2 - Grille & Air Moving Parts
3 - Chassis Assembly
4 - Refrigerant Assembly
SELECT A DIAGRAM
New Model Search:

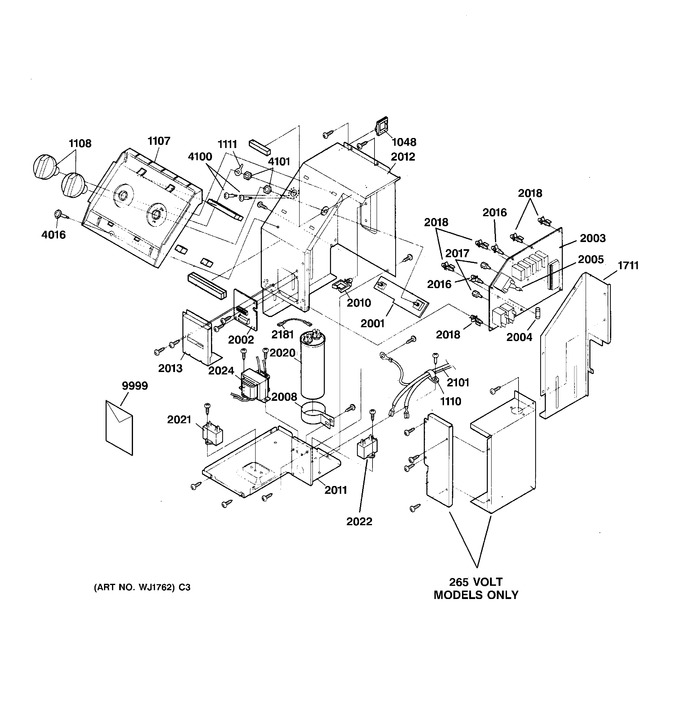

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1048 | WJ03X10007 | Wire Holder |
|
- | |||||
| 1107 | WP07X10003 | Knob Base |
|
- | |||||
| 1108 | WJ12X10009 | Control Knob Ass'y |
|
- | |||||
| 1110 | WJ03X10006 | Wire Holder |
|
- | |||||
| 1111 | WJ28X10010 | Temp. Control Cover |
|
- | |||||
| 1711 | WP76X10005 | Control Box F |
|
- | |||||
| 2001 | WP26X10006 | Operation Unit |
|
- | |||||
| 2002 | WP26X10009 | Aux Unit |
|
- | |||||
| 2003 | WP26X10008 | Control Unit |
|
$ 310.71 | |||||
| 2004 | WP23X10003 | Fuse |
|
- | |||||
| 2005 | WP27X10002 | Varistor |
|
- | |||||
| 2008 | WP03X10001 | Capacitor Clamp |
|
- | |||||
| 2010 | WP01X10009 | Cord Holder L |
|
- | |||||
| 2011 | WP76X10014 | Control Box S |
|
- | |||||
| 2012 | WP76X10018 | Control Box Ass'y |
|
- | |||||
| 2013 | WP76X10016 | Aux Cover K |
|
- | |||||
| 2016 | WJ01X10043 | Spacer |
|
- | |||||
| 2017 | WJ01X10044 | Spacer |
|
- | |||||
| 2018 | WP01X10010 | Spacer |
|
- | |||||
| 2020 | WJ20X748 | Running Capacitor |
|
- | |||||
| 2021 | WP20X10005 | Od Fan Motor Capacitor |
|
- | |||||
| 2022 | WJ20X10017 | Id Fan Motor Capacitor |
|
- | |||||
| 2024 | WP27X10006 | Transformer |
|
- | |||||
| 2101 | WJ35X10005 | Power Supply Cord |
|
- | |||||
| 2181 | WJ37X10006 | Lead Wire |
|
- | |||||
| 4016 | WJ01X10059 | Special Screw |
|
- | |||||
| 4100 | WJ01X10032 | Special Screw |
|
- | |||||
| 4101 | WJ01X10042 | Special Nut |
|
- | |||||
| 9999 | 31-60555 | Mini-manual |
|
- | |||||
| 9999 | 49-7358 | Use&care Manual |
|
- |
