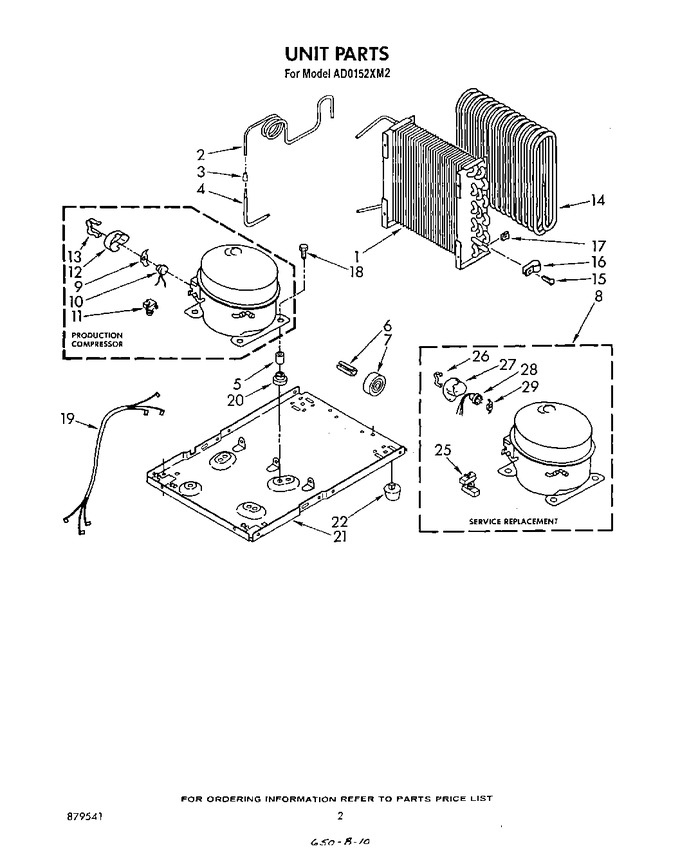

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949893		Condenser		Appelez-nous	-
2	998759		Tube, Restrictor (35.0`` Length)		Appelez-nous	-
3	474013		Strainer, Outlet Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes No.3)		Appelez-nous	-
5	646498		Sleeve (4)		Appelez-nous	-
6	489015		Pin, Roller (2)		Appelez-nous	-
7	998726		Roller (2)		Appelez-nous	-
8	485780		Compressor, Service (complete Assembly)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	950248		Overload		Appelez-nous	-
11	950249		Relay, Start		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	995082		Evaporator		Appelez-nous	-
15	WP488729		Screw, 8 X 3/8 (4)   (Replaces: 487910)			Immediately	$ 7.79
16	488946		Clamp, Tube (4)				$ 20.45
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646498		Grommet (4)		Appelez-nous	-
21	950359		Base		Appelez-nous	-
22	951886		Glide (2)		Appelez-nous	-
25	876693		Relay, Start		Appelez-nous	-
26	831282		Retainer, Cover		Appelez-nous	-
27	865068		Cover, Terminal		Appelez-nous	-
28	876690		Overload		Appelez-nous	-
29	549086		Spring, Overload		Appelez-nous	-
