SELECT A DIAGRAM

1 - Backsplash Assembly


3 - Front Panel & Door


4 - Upper Cabinet


5 - Lower Cabinet


6 - Blower & Drive Assembly


7 - Drum

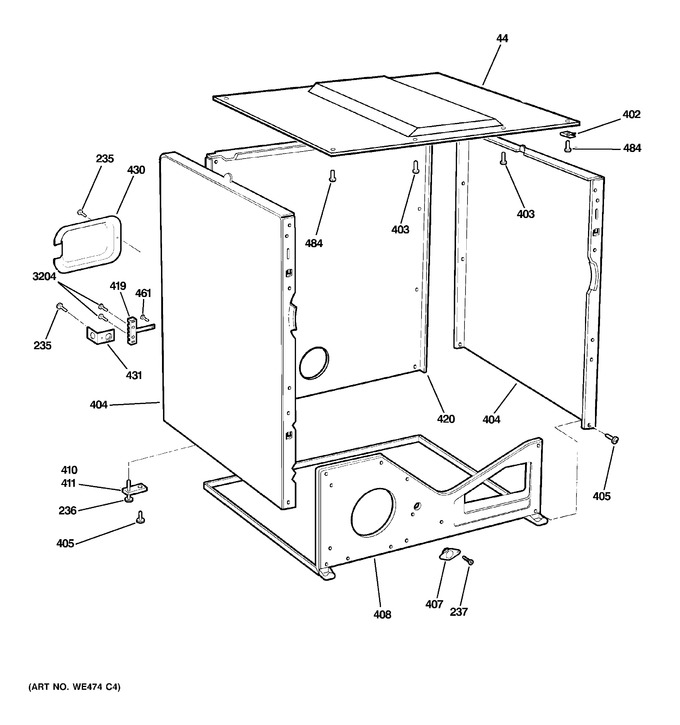

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	WE20M273		Cover Top		Appelez-nous	-
235	WE2M155		Screw		Appelez-nous	-
236	WW02L00244		Levelling Leg   (Replaces: WE1M771)				$ 9.29
237	WE2M154		Screw		Appelez-nous	-
402	WE2M162		Speed Nut		Appelez-nous	-
403	WE2M160		Screw #8		Appelez-nous	-
404	WE20M393		Panel Side Wh		Appelez-nous	-
405	WE2M223		Screw		Appelez-nous	-
407	LS2-135		Thermostat Drum Out   (Replaces: WE4M127)			Immediately	$ 24.60
408	WE20M398		Cabinet Base		Appelez-nous	-
410	WE1M772		Bracket Levelling Leg		Appelez-nous	-
410	WE1M782		Brkt & Lvl Leg Asm Frnt		Appelez-nous	-
410	WE1M781		Front Bracket Level Leg		Appelez-nous	-
411	WE1M773		Brkt & Lvl Leg Asm Rear				$ 37.94
419	WE4M325		Term Blk & Grnd Strap		Appelez-nous	-
420	WE20M302		Rear Panel		Appelez-nous	-
430	WE1M458		Term. Block Cover		Appelez-nous	-
431	WE1M457		Strain Relief Bracket		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
484	WE2M172		Screw 8-18 X 1 13/16"		Appelez-nous	-
3204	WH2M270		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
