Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 799833 Epoxy, Tube (aluminum Repair) Appelez-nous -
2 505168 Tape, No Drip 30` Appelez-nous -
3 479502 Tape, Vinyl 36` Special Order $ 66.77

4 10943 Oil, Turbine 1 Fl. Oz. Appelez-nous -
5 99243 Oil, Turbine 8 Fl. Oz. Appelez-nous -
6 WP978025 Valve, Access (1/4`` Tube O.d.)   (Replaces: 978025) In-Stock Immediately $ 105.25

6 876764 Valve, Access(3/16``) In-Stock Immediately $ 91.35

6 978026 Valve Access (5/16`` Tube O.d.) In-Stock Immediately $ 128.09

6 SF5538 Valve, Access (3/8`` Tube O.d.)   (Replaces: 978027) Special Order $ 21.64

6 978028 Valve, Access (1/2`` Tube O.d.) Appelez-nous -
6 978029 Valve, Access (5/8`` Tube O.d.) Special Order $ 93.85

6 978030 Valve, Access (3/4`` Tube O.d.) Special Order $ 130.71

7 978865 Seal, Ring (access Valve) (20 - Pack) Appelez-nous -
8 242820 Wire (14 Ga. 150 C Black) Appelez-nous -
8 47263 Wire, 25`` Roll (white 12 Ga.) Appelez-nous -
8 299885 Wire, 25` Roll (red 12 Ga.) Appelez-nous -
8 47261 Wire, 25`` Roll (black 12 Ga.) Appelez-nous -
8 242826 Wire, 25`` Roll (white 14 Ga.) Appelez-nous -
8 242825 Wire (14 Ga. 150 C Red) Appelez-nous -
8 10875 Wire (16 Ga. 80 C Blue) In-Stock Immediately $ 20.64

9 813684 Adhesive, Insulation (24 Oz. Spray) Appelez-nous -
10 WP279368 Adhesive, Insulation (2oz Tube)   (Replaces: 279368) In-Stock Immediately $ 110.91

11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (lacquer) Appelez-nous -
12 212643 Sealer, Permagum 4-1`` Strips   (Replaces: 212432) In-Stock Immediately $ 82.13

13 4318168 Sealer, Permagum 1 Lb. Bar   (Replaces: 99344) In-Stock Immediately $ 38.79

14 646753 Cap, Condensate Pan Appelez-nous -
15 WP16123 Washer, Cap   (Replaces: 647338) Special Order $ 7.70


    View Diagram in Separate Window     Print Icon   Print Part List

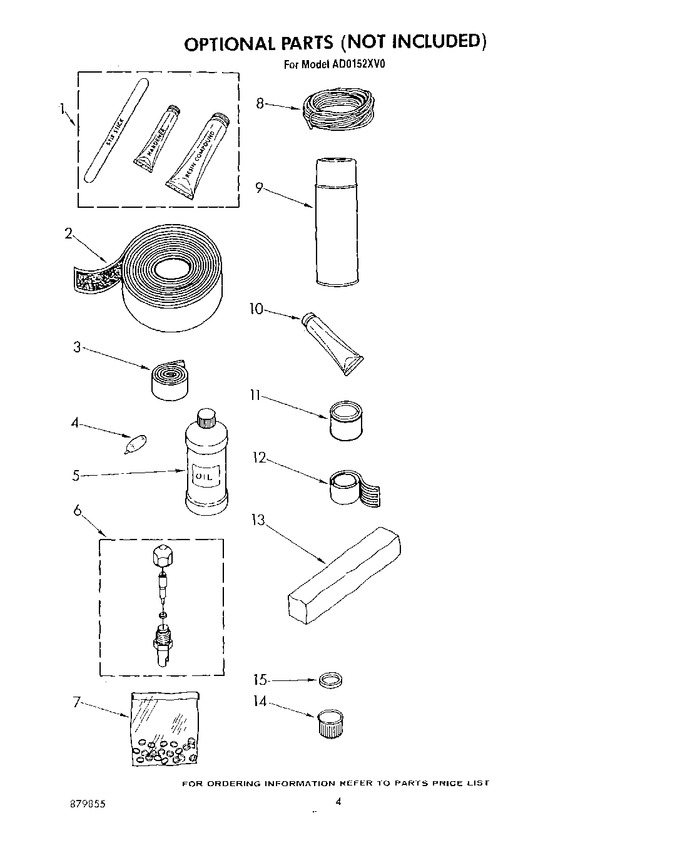

Diagram for AD0152XV0
