Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 951284 Bracket, Control Appelez-nous -
5 488624 Screw, S.m. No.8 X 3/8a Appelez-nous -
6 998777 Bracket, Fan Motor Mounting Appelez-nous -
9 WP488130 Nut, Fan Motor 8-32 (2)   (Replaces: 488130) Special Order $ 7.32

10 1156860 Motor, Fan Appelez-nous -
11 949645 Blade, Fan Appelez-nous -
14 WPW10141604 Screw, 8-32 X 5/32   (Replaces: 487871) Special Order $ 8.85

15 1155671 Cord, Power Appelez-nous -
16 998779 Plate, Orifice Appelez-nous -
17 998802 Seal Appelez-nous -
23 998744 Support Appelez-nous -
25 WPW10339879 Tie, Cable   (Replaces: 602851) Special Order $ 8.30


    View Diagram in Separate Window     Print Icon   Print Part List

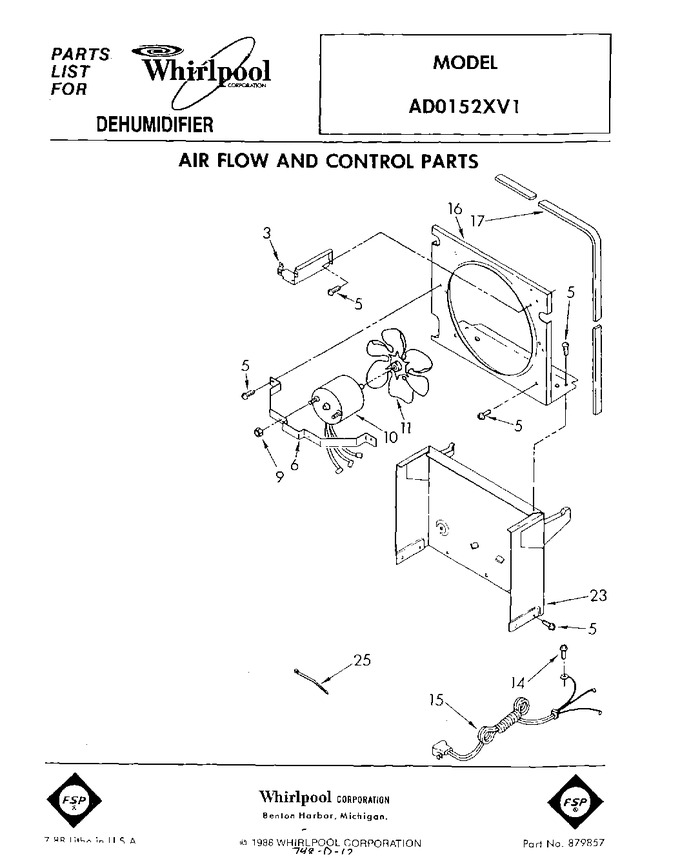

Diagram for AD0152XV1
