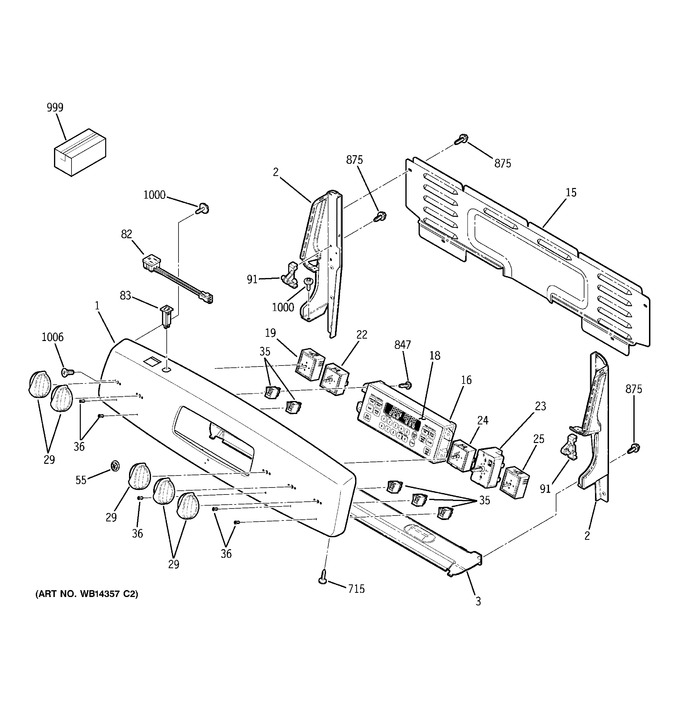

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Warming Drawer


5 - Door


6 - Door Lock


7 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T11135		Trim & Bracket Asm		Appelez-nous	-
2	WB36T11040		Plate End Lt (bk)		Appelez-nous	-
2	WB36T11039		Plate End Rt (bk)		Appelez-nous	-
3	WB02T10391		Shield Heat Bkgd		Appelez-nous	-
15	WB02T10392		Cover Control		Appelez-nous	-
16	WB27T10810		Control Erc		Appelez-nous	-
18	WB27T11036		Membrane Plate Asm		Appelez-nous	-
19	WS01F01598		Switch Inf Cntl   (Replaces: WB27T10384)			Immediately	$ 73.85
22	WG02F04022		Control Surf Elem   (Replaces: WB24T10146)			Immediately	$ 59.78
23	WG02F04021		Control Surf Elem   (Replaces: WB24T10145)			Immediately	$ 155.16
24	WG02F04019		Inf Sw Cntl   (Replaces: WB24T10058)			Immediately	$ 188.11
25	WG02F05778		Switch Infinite Control   (Replaces: WB24T10148)			Immediately	$ 208.13
29	WG02L01669		Knob Infinite (ss)   (Replaces: WB03T10284)			Immediately	$ 101.40
35	WG02F05616		Light Indicator   (Replaces: WB25T10040)				$ 12.40
36	WG02F04387		Lens   (Replaces: WB25T10042)				$ 3.97
55	WB02T10359		Badge Ge		Appelez-nous	-
82	WB08T10032		Receptacle (bk)		Appelez-nous	-
83	WB08T10033		Breaker Receptacle		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
715	WD2X432		Screw 8-18 X 5/16 Bk		Appelez-nous	-
847	WB1K5167		Screw 8-18 X 3/8"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk		Appelez-nous	-
999	31-10619		Instr Install Ovn Door		Appelez-nous	-
999	31-10672		Instruction Install		Appelez-nous	-
999	31-10679		Instruction Install		Appelez-nous	-
999	WB02X11121		Cleaner Glass		Appelez-nous	-
999	31-14738		Manual Mini & Wd Asm		Appelez-nous	-
1000	WB01T10016		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
1006	WS01A01257		Scr 8-32 Tpt Flr .215 Sn   (Replaces: WB01T10020)				$ 3.97

    View Diagram in Separate Window       Print Part List
