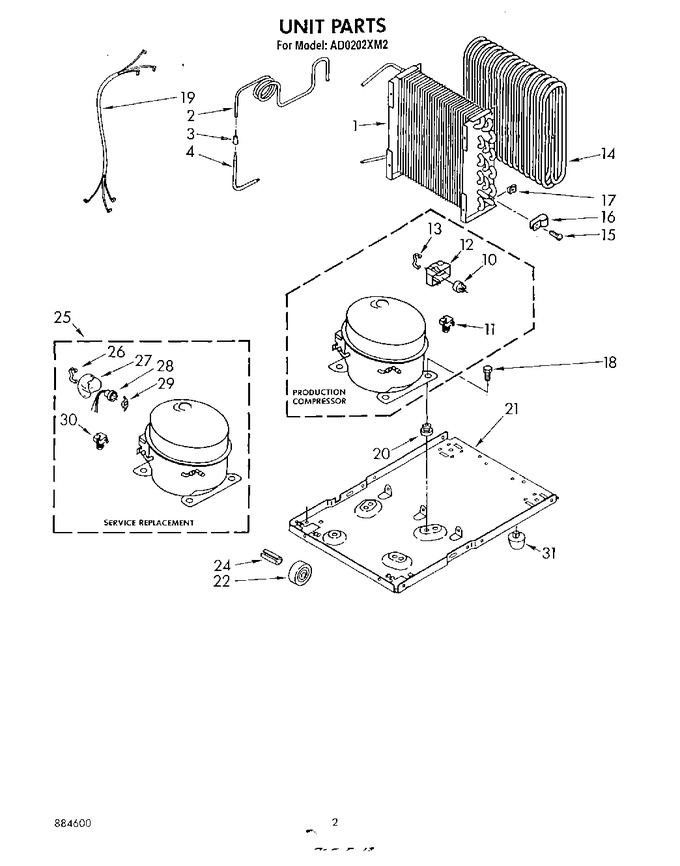

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	949921		Condenser		Appelez-nous	-
2	1157397		Tube, Restrictor (length 28.0``)		Appelez-nous	-
3	474013		Strainer, Outlet Tube		Appelez-nous	-
4	949896		Tube, Outlet (includes Item 3)		Appelez-nous	-
10	1156818		Overload, Protector		Appelez-nous	-
11	1156814		Relay, Start		Appelez-nous	-
12	1157852		Cover, Terminal		Appelez-nous	-
13	938384		Retainer, Cover		Appelez-nous	-
14	1157554		Evaporator		Appelez-nous	-
15	WP488729		Screw, Smno.8 X 1/2 (4)   (Replaces: 487910)			Immediately	$ 7.79
16	488946		Clamp, Tube (4)				$ 20.45
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156749		Grommet (4)		Appelez-nous	-
21	950359		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
24	489015		Roll Pin (2)		Appelez-nous	-
25	485781		Compressor, Service (complete Assembly)		Appelez-nous	-
26	549342		Retainer, Cover		Appelez-nous	-
27	549336		Cover, Terminal		Appelez-nous	-
28	649842		Overload, Protector		Appelez-nous	-
29	549086		Spring, Overload		Appelez-nous	-
30	549500		Relay		Appelez-nous	-
31	951886		Glide (2)		Appelez-nous	-
