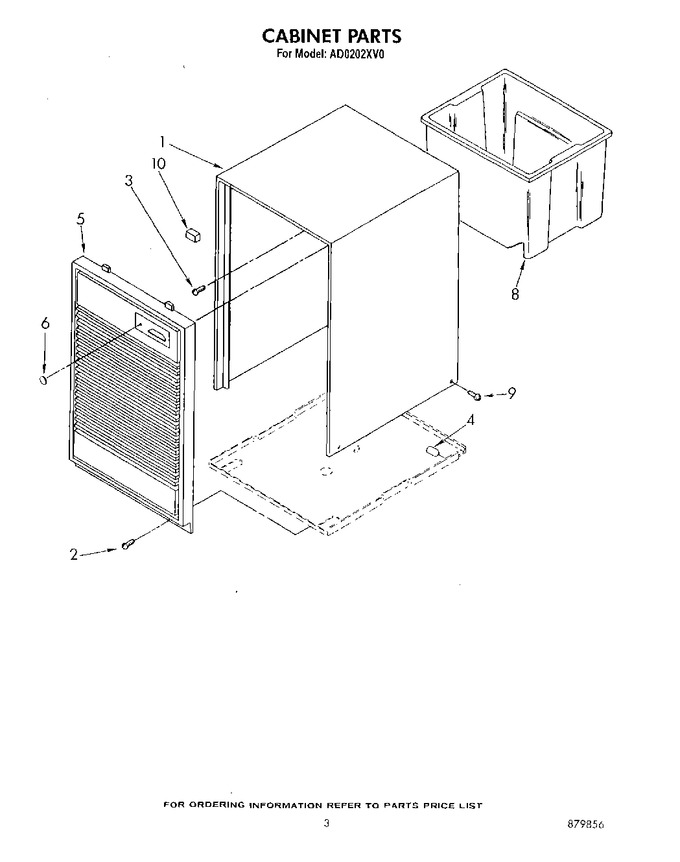

01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998821 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 489120) |
|
$ 22.22 | |||||
| 3 | WP488729 | Screw, Sm No.8 X 3/8 (2) (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 4 | 998869 | Thread Cap |
|
- | |||||
| 5 | 950269 | Grille, Front |
|
- | |||||
| 6 | 998846 | Lens, Light |
|
- | |||||
| 8 | 951901 | Pan, Condensate |
|
$ 80.76 | |||||
| 9 | 489016 | Screw, Tc 8-32 X 3/8 (4) |
|
- | |||||
| 10 | 978029 | 3/4`` Tube O.d. |
|
$ 93.85 | |||||
| 10 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 10 | WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 10 | 948584 | Spacer, Block |
|
- | |||||
| 10 | 646753 | Cup, Condensate Pan |
|
- | |||||
| 10 | WP16123 | Washer, Condensate Pan (Replaces: 647338) |
|
$ 8.16 | |||||
| 10 | 485426 | Paint, Touch-up Gray Lacquer (1/2 Pint) |
|
- | |||||
| 10 | 212643 | Sealer, Permagum (4-12`` Strips) |
|
Immediately | $ 82.13 | ||||
| 10 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 10 | 505168 | Tape, No Drip (30`) Valve, Access |
|
- | |||||
| 10 | 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 | ||||
| 10 | SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 21.64 | |||||
| 10 | 978028 | 1/2`` Tube O.d. |
|
- | |||||
| LIT1155689 | Sheet, Tech And Wiring Diagram |
|
- | ||||||
| LIT879856 | List, Repair Parts |
|
- | ||||||
| LIT1155876 | Guide, Use And Care |
|
- |
