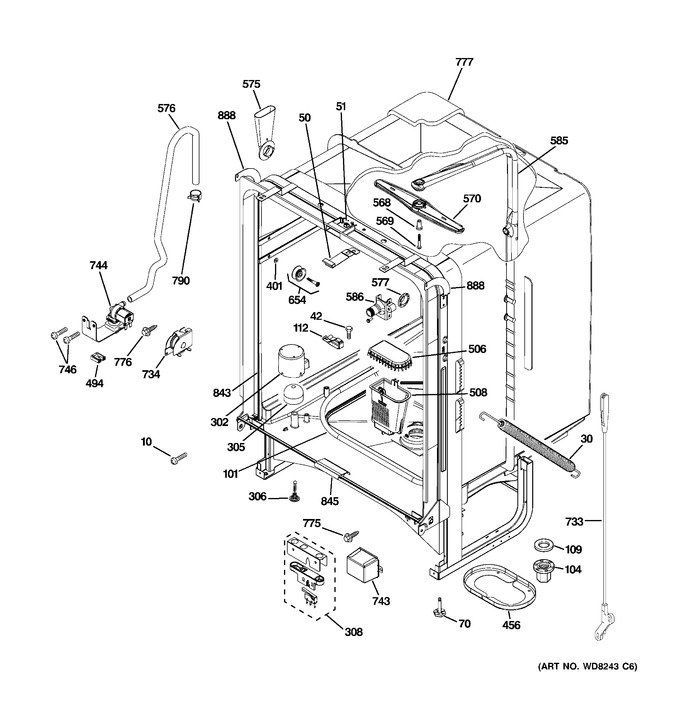

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
30	WD03X10014		Spring		Appelez-nous	-
42	WD02X10110		Scr #8-3/4 L Hx Hd Ss		Appelez-nous	-
50	WG04F04691		Keeper Latch Asm   (Replaces: WD13X10019)				$ 15.26
51	WD02X10066		Scr 10-24x1/2 Tt Trr S		Appelez-nous	-
70	WG04A00321		Screw Level   (Replaces: WD2X320)				$ 14.29
101	WD05X10010		Element Heating Asm		Appelez-nous	-
104	WD01X10097		Nut Tower Heater		Appelez-nous	-
109	WG04F00473		Grommet Heater   (Replaces: WD01X10094)				$ 21.44
112	WD01X10283		Support Heater		Appelez-nous	-
302	WG04F00292		Dome Float   (Replaces: WD12X10051)				$ 53.80
305	WG04F00449		Float   (Replaces: WD12X10047)				$ 51.53
306	WG04F01021		Stem Float   (Replaces: WD12X10048)				$ 80.96
308	WD21X10168		Switch Flood Asm		Appelez-nous	-
401	WD3X767		Washer St Stl		Appelez-nous	-
456	WD01X10106		Ring Sump		Appelez-nous	-
494	WD21X10355		Hsng Special-water Valve		Appelez-nous	-
506	WD12X10309		Cover Inlet		Appelez-nous	-
508	WG04L01684		Filter Sump & Cover Asm   (Replaces: WD22X10077)			Immediately	$ 122.34
568	WG04A01025		Bearing Spray Arm Up   (Replaces: WD01X10410)				$ 3.57
569	WG04A01240		Scr 8-16 B Hxw 1.08 Ss   (Replaces: WD02X10068)				$ 5.72
570	WD22X10068		Arm Spray Upper Asm		Appelez-nous	-
575	WD12X10180		Funnel Fill		Appelez-nous	-
576	WG04F00504		Hose Fill   (Replaces: WD24X10026)				$ 10.01
577	WD08X10053		Gasket Funnel Fill		Appelez-nous	-
585	WD12X10057		Conduit Main Asm		Appelez-nous	-
586	WD12X10059		Cone Docking		Appelez-nous	-
654	WD12X332		Roller Stud Asm				$ 4.88
733	WG02F12813		Cable Pulley Asm   (Replaces: WD01X10348)				$ 53.80
734	WD16X10009		Pulley Bracket Asm		Appelez-nous	-
743	WG02L01023		Cover Juction Box   (Replaces: WD12X448)				$ 18.59
744	WG03F00838		Valve Water Inlet   (Replaces: WD15X10011)			Immediately	$ 58.71
746	WD2X248		Scr 10-24x3/8 Tt Hex		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
776	WG04A01257		Scr 10-32 C Hx 7/16 S   (Replaces: WD02X10159)				$ 3.57
777	WG04A05053		Insulation Tub   (Replaces: WD01X10419)				$ 31.45
790	WH1X2036		Clamp Hose		Appelez-nous	-
843	WG04L00214		Gasket Tub   (Replaces: WD08X10018)			Immediately	$ 65.23
845	WG04L01889		Seal Short Bottom Door   (Replaces: WD08X10059)			Immediately	$ 141.17
888	WD01X10288		Bracket Counter		Appelez-nous	-
