SELECT A DIAGRAM

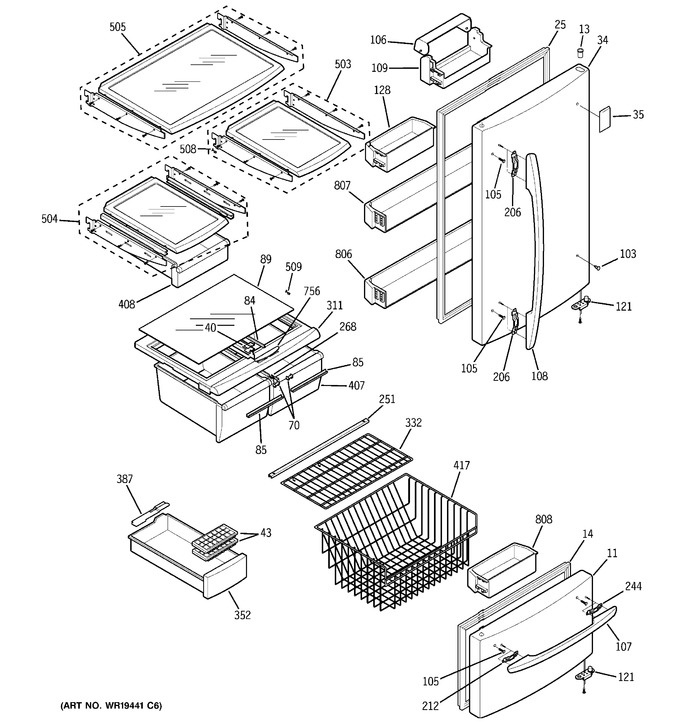

1 - Doors & Shelves


2 - Cabinet


3 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR78X10949		Door Asm Fzr		Appelez-nous	-
13	WR01X10493		Thimble		Appelez-nous	-
14	WR14X10181		Gasket Asm Fz		Appelez-nous	-
25	WR14X10182		Gasket Asm Ff		Appelez-nous	-
34	WR78X10938		Door Asm Ff		Appelez-nous	-
35	WR04X10139		Name Plate		Appelez-nous	-
40	WR02X11684		Guide Rail(middle T/v)		Appelez-nous	-
43	WG03F02198		Tray, Ice   (Replaces: WR30X10049)				$ 51.14
70	WR02X11701		Rail Slide(c)		Appelez-nous	-
84	WR01L07648		Middle Gasket   (Replaces: WR14X10176)				$ 40.23
85	WR14X10178		Front Gasket		Appelez-nous	-
89	WR32X10468		Glass Cover Veg Pan		Appelez-nous	-
103	WR02X11750		Plug Button - Ww		Appelez-nous	-
105	WR01X10446		Bolt-door Hndl		Appelez-nous	-
106	WG03L01159		Dairy Door Cvr   (Replaces: WR02X11706)				$ 62.33
107	WR12X10678		Handle,fzr Door		Appelez-nous	-
108	WR12X10677		Handle,ff Door		Appelez-nous	-
109	WR71X10549		Dairy Bin		Appelez-nous	-
121	WR02X11720		Stopper Door		Appelez-nous	-
128	WR71X10550		Door Bin - Upper		Appelez-nous	-
206	WR02X11679		Bracket Handle Ff		Appelez-nous	-
212	WR02X11678		Bracket Handle Fzr(l)		Appelez-nous	-
244	WR02X11677		Bracket Handle Fz(r)		Appelez-nous	-
251	WR02X11707		Supportor Cover T/v		Appelez-nous	-
268	WG03L01071		Adjuster   (Replaces: WR02X11671)				$ 21.63
311	WR72X10175		Frame - Lower Pan		Appelez-nous	-
332	WR71X10657		Shelf Frz - Wire		Appelez-nous	-
352	WR30X10052		Ice Bin		Appelez-nous	-
387	WR02X11662		Cover Ice Bin		Appelez-nous	-
407	WR32X10469		Veg Pan		Appelez-nous	-
408	WR32X10470		Tray Assembly,snack		Appelez-nous	-
417	WR21X10086		Fzr Basket		Appelez-nous	-
503	WR71X10660		Shelf Assembly		Appelez-nous	-
504	WR71X10659		Shelf Assembly		Appelez-nous	-
505	WR71X10658		Shelf Assembly Full		Appelez-nous	-
508	WG03L01586		Shelf Stopper   (Replaces: WR02X12053)				$ 6.09
509	WG03L01139		Cover Stopper   (Replaces: WR02X12054)				$ 6.09
756	WR02X11729		Deco,cover-t/v		Appelez-nous	-
806	WR71X10551		Door Bin- Lower		Appelez-nous	-
807	WG03A00344		Basket Door - Middle   (Replaces: WR71X10656)				$ 132.33
808	WR71X10552		Door Module - Fzr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
