SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board

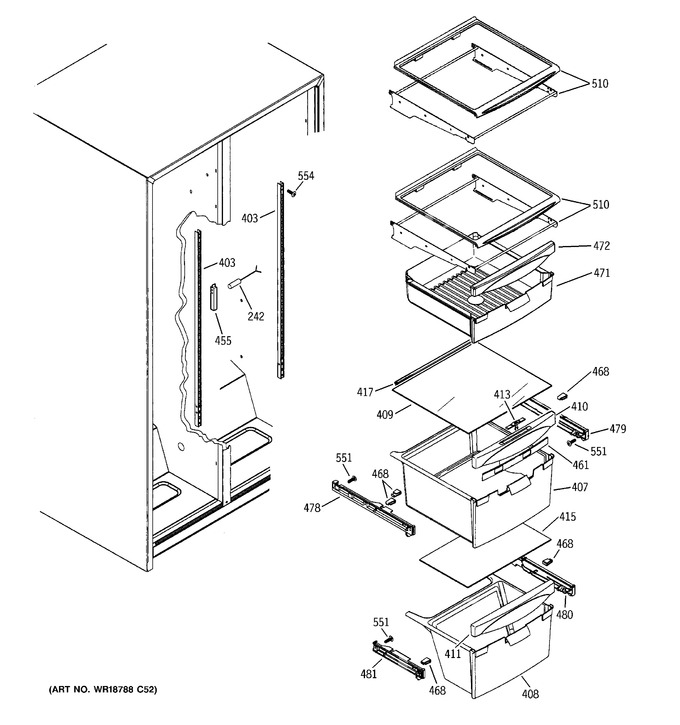

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
242	WR55X10736		Sensor Temperature		Appelez-nous	-
403	WR71X10796		Track Cant Shelf		Appelez-nous	-
407	WG03L04206		Pan Veg   (Replaces: WR32X10133)				$ 196.05
408	WR32X10131		Pan Meat		Appelez-nous	-
409	WR32X10594		Cover Pan Glass		Appelez-nous	-
410	WR17X12188		Handle Veg Pan		Appelez-nous	-
411	WR17X12178		Handle Pan Meat		Appelez-nous	-
413	WR02X11174		Button Slide		Appelez-nous	-
415	WR32X10595		Cover Pan Glass		Appelez-nous	-
417	WR14X10052		Gasket Shield Lower		Appelez-nous	-
417	WR14X10253		Gasket Shield Lower		Appelez-nous	-
455	WR02X12258		Cover Sensor Ff		Appelez-nous	-
461	WR72X10083		Slide Pan		Appelez-nous	-
468	WR1X2048		Bearing Slide		Appelez-nous	-
471	WR32X10238		Pan Snack Lower		Appelez-nous	-
472	WR17X12492		Handle Pan Snack		Appelez-nous	-
478	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 111.73
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 87.23
480	WG03F00962		Slide Asm Rh   (Replaces: WR72X242)				$ 81.27
481	WG03F00961		Slide Asm Lh   (Replaces: WR72X241)				$ 106.28
510	WR32X10381		Shelf Slideout Asm		Appelez-nous	-
551	WR01A01042		Scr 8-18 Ab Rndw 5/8 Ss   (Replaces: WR01X10789)				$ 3.97
554	WR01X10601		Scr 10-24 Tt Ihxw 1.000		Appelez-nous	-
