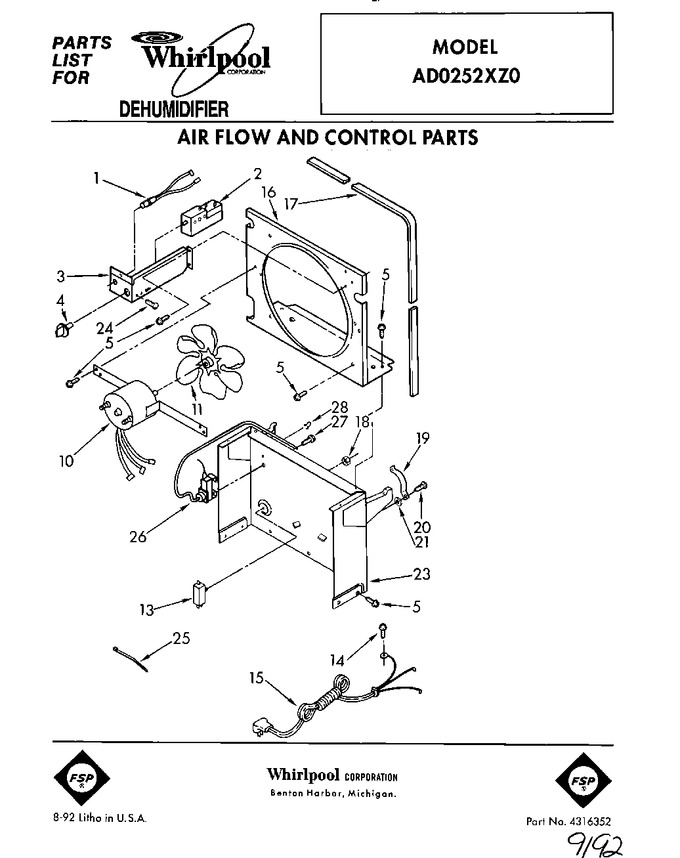

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1158419		Light, Indicator		Appelez-nous	-
2	1162578		Humidistat, Control		Appelez-nous	-
3	951284		Bracket, Humidistat		Appelez-nous	-
4	1162670		Knob, Humidistat Control		Appelez-nous	-
5	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
10	1162030		Motor, Fan		Appelez-nous	-
11	949645		Blade, Fan		Appelez-nous	-
13	999747		Switch, Water Level Control		Appelez-nous	-
14	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
15	1155670		Cord, Appliance		Appelez-nous	-
16	998779		Plate, Orifice		Appelez-nous	-
17	1162704		Seal		Appelez-nous	-
18	489001		Palnut, 3/8-32		Appelez-nous	-
19	1161718		Spring, Water Level		Appelez-nous	-
20	WP488163		Screw, S.m.no.8 X 3/4   (Replaces: 488248)				$ 7.92
21	489083		Washer, Repair (.045 Thickness)		Appelez-nous	-
21	489029		Washer (repair) (.062 Thickness)		Appelez-nous	-
23	998744		Support		Appelez-nous	-
24	WP3177991		Screw, 8-18x1/4   (Replaces: 1162513)			Immediately	$ 7.55
25	WPW10339879		Tie, Cable   (Replaces: 602851)				$ 8.30
26	1155109		Thermostat, De-icer		Appelez-nous	-
27	WP488234		Screw, 8-32 X 1/4 (2)   (Replaces: 488234)				$ 7.08
28	471363		Clamp, Tube (2)		Appelez-nous	-
