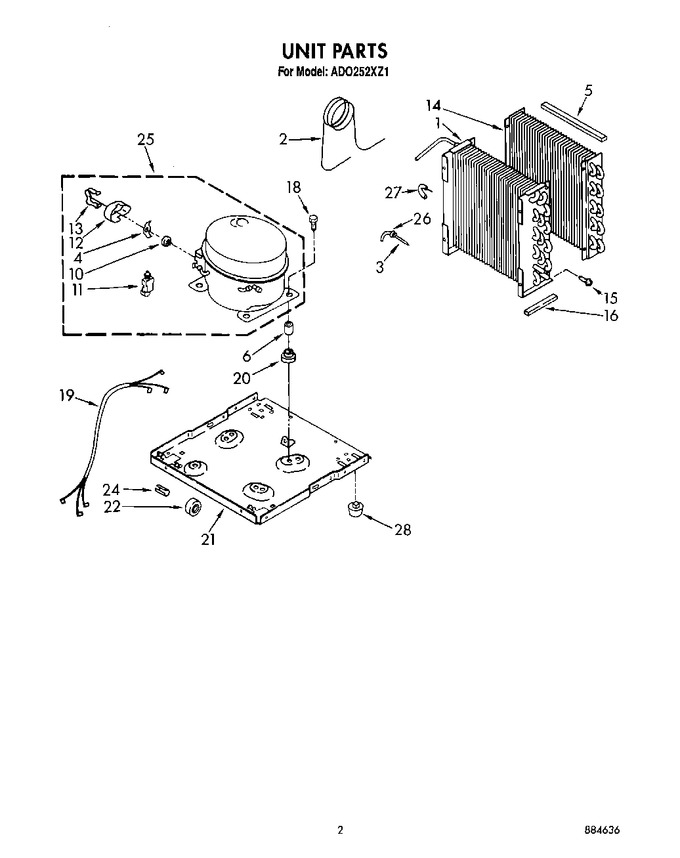

01 - Air Flow And Control


02 - Unit Parts


03 - Cabinet, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1164219		Condenser		Appelez-nous	-
2	1164204		Tube, Restrictor (length 24.00``)		Appelez-nous	-
3	1162037		Strainer		Appelez-nous	-
4	950061		Spring, Overload (production)		Appelez-nous	-
4	549086		Spring Overload (service Overload)		Appelez-nous	-
5	1162348		Seal, Evaporator Top		Appelez-nous	-
6	646498		Sleeve (4)		Appelez-nous	-
10	4387535		Overload, Protector (service)   (Replaces: 2154760)				$ 191.05
10	1163837		Overload, Protector (production)		Appelez-nous	-
11	1163838		Relay, Start (production)		Appelez-nous	-
11	WP2262181		Relay, Start (service)   (Replaces: 1108143)				$ 128.78
12	950055		Cover, Terminal (production)		Appelez-nous	-
12	1108115		Cover, Terminal (service)		Appelez-nous	-
13	549342		Retainer, Cover (service)		Appelez-nous	-
13	950056		Retainer, Cover (production)		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 8.40
16	1162372		Seal		Appelez-nous	-
18	1163835		Bolt, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
24	489015		Pin, Roller (2)		Appelez-nous	-
25	1163836		Compressor, (complete Assembly)		Appelez-nous	-
26	854624		Bend, Return		Appelez-nous	-
27	855199		Bend, Return (17)		Appelez-nous	-
28	951886		Glide (2)		Appelez-nous	-
