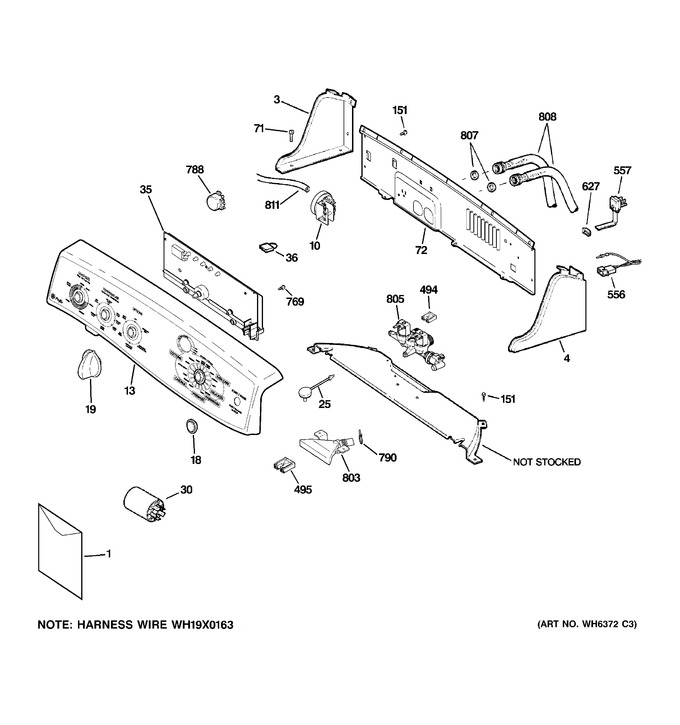

1 - Controls & Backsplash


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16569		Pm Sheet Mini Manual		Appelez-nous	-
1	49-90384		Pm Manual Use & Care		Appelez-nous	-
1	31-15441-1		Pm Instruction Install		Appelez-nous	-
3	WH42X10623		End Cap Lh Wh		Appelez-nous	-
4	WH42X10622		End Cap Rh Wh		Appelez-nous	-
10	WH12X10412		Switch Pressure		Appelez-nous	-
13	WH42X10824		Backsplash Asm		Appelez-nous	-
18	WH01X10306		Button Switch		Appelez-nous	-
19	WG04L00308		Knob Asm   (Replaces: WH01X10305)			Immediately	$ 11.44
25	WH12X10410		Probe Sensor Atc		Appelez-nous	-
35	WH12X10438		Board Asm Mounted		Appelez-nous	-
36	WH12X10110		Connector Model Select		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10104		Panel Back		Appelez-nous	-
151	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
494	WD21X10257		Housing Terminal		Appelez-nous	-
495	WD21X10258		Term Hsng - Solenoid		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WG04F04596		Cord Power Asm   (Replaces: WH19X10068)				$ 53.80
627	WH12X10208		Self Locking Strain Relf		Appelez-nous	-
769	WG03A00428		Scr 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
769	WH02X10236		Scr M4-1.44 B Pa 25 S		Appelez-nous	-
788	WB17X5064		Housing Socket Pkg 4 P1n		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WH41X10206		Funnel Shower Head		Appelez-nous	-
805	WG04F02334		Valve Triple Water   (Replaces: WH13X10037)			Immediately	$ 140.72
807	WH02X10161		Washer Flat		Appelez-nous	-
808	WH41X10095		Hose Inlet Asm		Appelez-nous	-
808	WH41X10094		Hose Inlet Asm		Appelez-nous	-
811	WG04F03638		Hose Pressure Switch   (Replaces: WH41X365)			Immediately	$ 14.29
