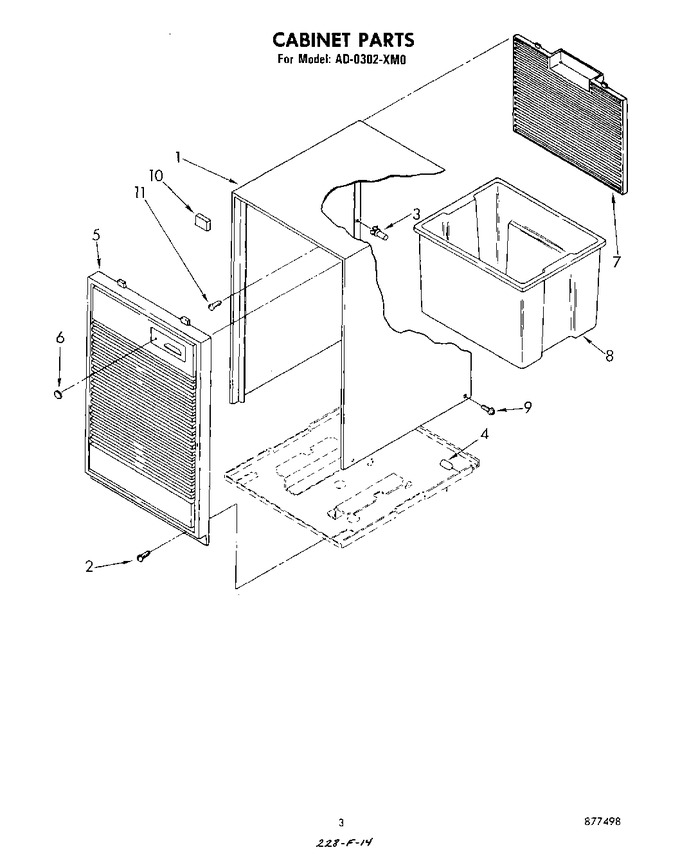

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998821		Cabinet		Appelez-nous	-
2	WPW10141625		Screw, No.8-32 X 3/8 (2)   (Replaces: 489104)				$ 21.16
3	998813		Retainer Pin (rear Grille)		Appelez-nous	-
4	998869		Cap, Thread		Appelez-nous	-
5	950269		Grille, Front		Appelez-nous	-
6	998846		Lens, Light		Appelez-nous	-
7	998832		Grille, Rear		Appelez-nous	-
8	998801		Pan, Condensate		Appelez-nous	-
9	489016		Screw, Tc 8-32 X 3/8 (6)		Appelez-nous	-
10	948584		Spacer, Grille		Appelez-nous	-
11	877498		List, Repair Parts		Appelez-nous	-
11	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
11	WP488729		Screw, 8 X 3/8 (2)   (Replaces: 489073)			Immediately	$ 7.79
11	646753		Cap, Condensate Pan		Appelez-nous	-
11	WP16123		Washer, Cap (condensate Pan)   (Replaces: 647338)				$ 7.70
11	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
11	799351		Thinner (1 Gal.)		Appelez-nous	-
11	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
11	505168		Tape, No Drip		Appelez-nous	-
11	978026		Valve, Access (5/16``)			Immediately	$ 128.09
11	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
11	978028		Valve, Access (1/2)		Appelez-nous	-
11	978029		Valve Access (5/8``)				$ 93.85
11	978030		Valve, Access (3/4``)				$ 130.71
11	951037		Sheet, Service Tech		Appelez-nous	-
11	998866		Guide, Use & Care		Appelez-nous	-
11	950298		Guide, Consumer Buy		Appelez-nous	-
