SELECT A DIAGRAM

1 - Doors


2 - Cabinet


3 - Unit Parts


4 - Ice Maker

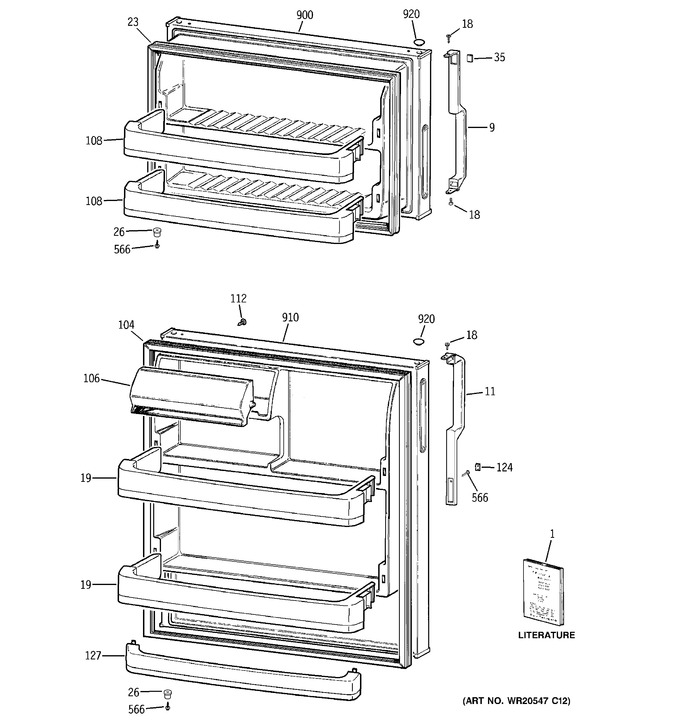

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51777		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60512		Pm Guide Owners		Appelez-nous	-
9	WG03L00751		Handle Door Asm Fz   (Replaces: WR12X10714)				$ 66.80
9	WR12X10685		Handle Door Asm Fz Bk		Appelez-nous	-
11	WG03L00750		Handle Door Ff Wh   (Replaces: WR12X10710)				$ 58.86
11	WG03L01398		Handle Door Ff Bk   (Replaces: WR12X10684)				$ 68.39
18	WR1X1726		Scr 10-16ab Fwr 3/4 Ss		Appelez-nous	-
19	WG03F01597		Shelf Fixed Ff   (Replaces: WR17X11889)			Immediately	$ 66.22
23	WG03L00639		Gasket Door Fz   (Replaces: WR24X10227)				$ 133.54
23	WG03L00640		Gasket Door Fz   (Replaces: WR24X10228)			Immediately	$ 146.91
26	WR02X13134		Stop Door		Appelez-nous	-
26	WR02X13135		Stop Door		Appelez-nous	-
35	WR04X10030		Lens Nameplate Bk		Appelez-nous	-
35	WG03F01617		Lens Nameplate Wh   (Replaces: WR04X10028)				$ 4.37
104	WG03L01327		Gasket Door Ff   (Replaces: WR24X10236)			Immediately	$ 161.33
104	WG03L02119		Gasket Door Ff   (Replaces: WR24X10237)			Immediately	$ 168.52
106	WG03L00721		Door Dairy   (Replaces: WR22X10068)				$ 83.70
108	WG03F01622		Shelf Fixed Fz   (Replaces: WR17X11890)			Immediately	$ 50.92
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
124	WR12X721		Plug Button Insert Wh		Appelez-nous	-
124	WR12X564		Plug Button Insert Bk		Appelez-nous	-
127	WG03L01567		Shelf Fixed Ff   (Replaces: WR17X11911)				$ 67.82
566	WR01X10898		Scr 12-24 Gx Bht20 .900		Appelez-nous	-
900	WR78X12490		Door Asm Foam Fz		Appelez-nous	-
900	WR78X12492		Door Asm Foam Fz		Appelez-nous	-
910	WG03L01287		Door Asm Foam Ff   (Replaces: WR78X12491)				$ 502.57
910	WR78X12493		Door Asm Foam Ff		Appelez-nous	-
920	WR02X11774		Plug Button Thimble		Appelez-nous	-
920	WR2X8233		Plug Button Thimble Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
