SELECT A DIAGRAM

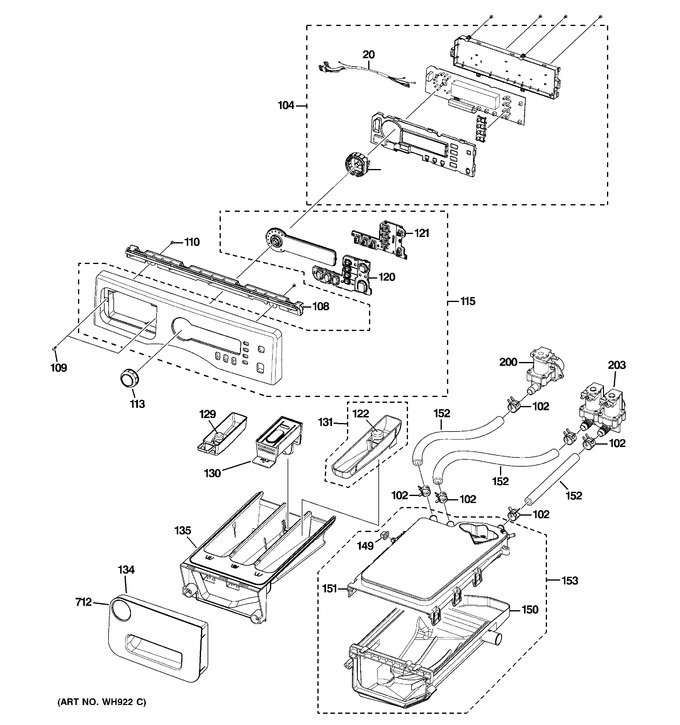

1 - Controls & Dispenser


2 - Cabinet, Cover & Top Panel


3 - Front Panel & Door


4 - Tub & Motor


5 - Fasteners


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WH19X10065		Harness - Control Board		Appelez-nous	-
102	WH02X10311		Clamp Hose (id 0.55")		Appelez-nous	-
104	WG04F04570		Control Board Asm   (Replaces: WH12X10443)			Immediately	$ 467.17
108	WH16X10125		Support Control Panel		Appelez-nous	-
109	WH02X10081		Screw Tapping		Appelez-nous	-
110	WH02X10327		Screw Tapping (m4 X L12)		Appelez-nous	-
113	WG04L02359		Knob Asm   (Replaces: WH11X10057)				$ 88.99
115	WH42X10818		Control Panel Asm Ms		Appelez-nous	-
115	WG04F05233		Control Panel Asm Wh   (Replaces: WH42X10817)				$ 235.26
120	WH12X10450		Push Button - Plastic		Appelez-nous	-
121	WH12X10451		Push Button - Rubber		Appelez-nous	-
122	WH01X10495		Cap		Appelez-nous	-
129	WG04L01790		Liquid Detergent Insert   (Replaces: WH41X10230)				$ 52.50
130	WH41X10231		Softner Insert W/latch		Appelez-nous	-
131	WG04L02808		Bleach Insert   (Replaces: WH41X10226)				$ 46.05
134	WH41X10243		Drawer Dispenser Frnt Wh		Appelez-nous	-
134	WH41X10244		Drawer Dispenser Frnt Ms		Appelez-nous	-
135	WH41X10236		Drawer Dispenser Wh		Appelez-nous	-
149	WH01X10493		Bushing		Appelez-nous	-
150	WH41X10227		Diverter Box - Bottom		Appelez-nous	-
151	WH41X10228		Diverter Box - Top		Appelez-nous	-
152	WH41X10238		Hose Diverter Box Inlet		Appelez-nous	-
153	WG04L01636		Drawer Dispenser Asm   (Replaces: WH41X10242)				$ 316.06
200	WG04F05885		Valve Water - Single   (Replaces: WH13X10045)				$ 140.69
203	WG04F05884		Valve Water - Dual   (Replaces: WH13X10046)				$ 186.95
712	WH01X10468		Badge - Ge		Appelez-nous	-
