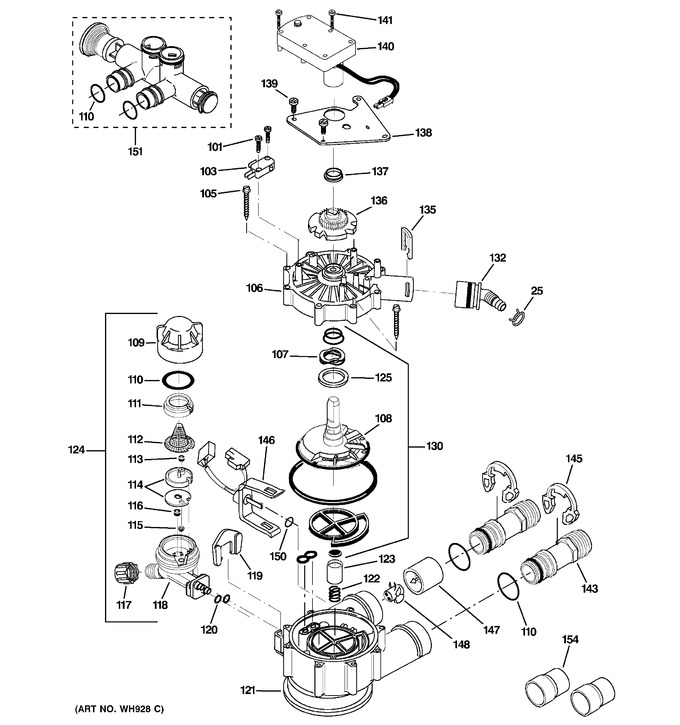

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	WS18X10003		Clamp Hose				$ 45.92
101	WS02X10023		Screw, #4-24 X 3/4		Appelez-nous	-
103	WS21X10003		Switch				$ 33.08
105	WS02X10024		Screw, #10 X 2 5/8		Appelez-nous	-
106	WS31X10013		Cover Valve		Appelez-nous	-
107	WS03X10034		Washer Wave		Appelez-nous	-
108	WS26X10010		Rotor & Disc				$ 141.93
109	WS19X10004		Cap				$ 25.69
110	WS03X10011		Seal O-ring 1.125 X 1.37				$ 13.67
111	WS19X10005		Support Screen		Appelez-nous	-
112	WS03X10013		Screen				$ 17.67
113	WS22X10036		Flow Plug, .15 Gpm				$ 19.59
114	WS08X10006		Gasket, Nozzle/vent				$ 70.97
115	WS03X10015		Screen Cone				$ 14.57
117	WS03X10017		Nut Ferrule				$ 12.85
118	WS15X10034		Nozzle/venturi Body				$ 69.04
119	WS03X10018		Retainer				$ 12.85
120	WS03X10019		Seal, O-ring 1/4" X 3/8"				$ 3.54
121	WS15X10025		Body Valve				$ 289.96
122	WS03X10020		Spring				$ 6.75
123	WS22X10029		Plug, Drain Seal		Appelez-nous	-
124	WS15X10036		Nozzle/venturi Asm.		Appelez-nous	-
125	WS03X10043		Wave Spring Bearing		Appelez-nous	-
130	WS35X10020		Seal Kit				$ 135.83
132	WS22X10058		Adaptor, Drain Hose		Appelez-nous	-
135	WS03X10033		Clip, Drain		Appelez-nous	-
136	WS26X10008		Cam & Gear		Appelez-nous	-
137	WS26X10009		Bearing		Appelez-nous	-
138	WS26X10023		Plate Motor		Appelez-nous	-
139	WS02X10028		Screw, #6-20x3/8"		Appelez-nous	-
140	WS26X10021		Motor Asm				$ 84.45
141	WS02X10058		Screw #8 - 32 X 1		Appelez-nous	-
143	WS60X10011		Adapter-npt Thd-1" Valve				$ 23.56
145	WS60X10008		Clip				$ 3.86
146	WS28X10018		Harness Wire, Sensor Asm		Appelez-nous	-
147	WS26X10030		Turbine Support   (Replaces: WS19X10008)				$ 91.20
148	WS26X10030		Turbine   (Replaces: WS19X10009)				$ 91.20
150	WS03X10024		Seal, O-ring				$ 6.75
151	WS15X10026		Valve By-pass Asm.		Appelez-nous	-
154	WS22X10021		Plug, Fill Flow, 0.3 Gpm				$ 26.34
