SELECT A DIAGRAM

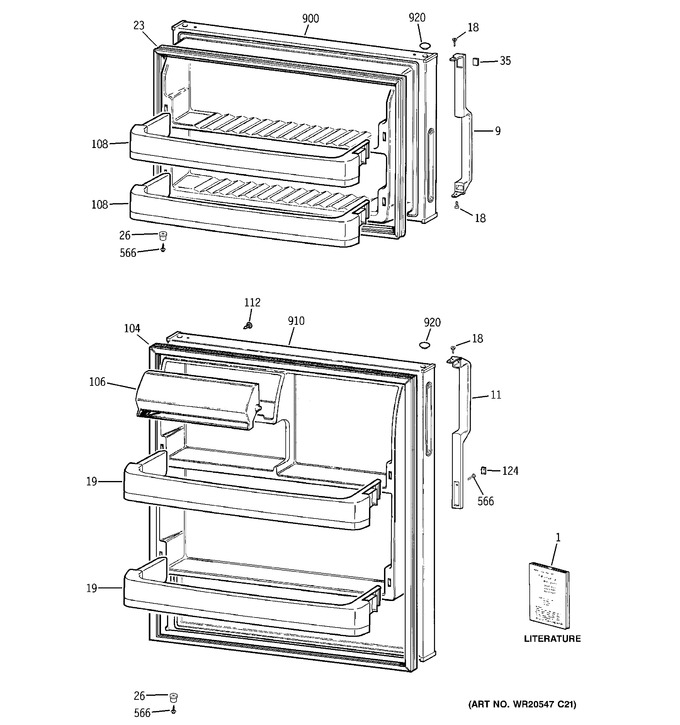

1 - Doors
2 - Cabinet
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-60521 | Pm Guide Owners |
|
- | |||||
| 1 | 31-51777 | Pm Mini Manual Wiring |
|
- | |||||
| 9 | WR12X10453 | Handle Door Assy Fz Bisq |
|
- | |||||
| 11 | WR12X10454 | Handle Door Ff Bisque |
|
- | |||||
| 18 | WR1X1726 | Scr 10-16 Ab 3/4 Ss |
|
- | |||||
| 19 | WG03F01597 | Shelf Fixed Ff (Replaces: WR17X11889) |
|
Immediately | $ 76.28 | ||||
| 23 | WG03L00640 | Gasket Door Fz (Replaces: WR24X10228) |
|
Immediately | $ 152.19 | ||||
| 26 | WR02X13134 | Stop Door |
|
- | |||||
| 35 | WR02X10708 | Lens Nameplate |
|
- | |||||
| 104 | WG03L01326 | Gasket Door Ff (Replaces: WR24X10229) |
|
Immediately | $ 181.14 | ||||
| 106 | WG03L00757 | Door Dairy (Replaces: WR22X487) |
|
$ 109.16 | |||||
| 108 | WG03F01622 | Shelf Fixed Fz (Replaces: WR17X11890) |
|
Immediately | $ 50.92 | ||||
| 112 | WR02X10459 | Rvsbl Door Caps Bisque |
|
- | |||||
| 124 | WR12X10452 | Plug Button Insert |
|
- | |||||
| 566 | WR01X10898 | Scr 12-24 Gx Bht20 .900 |
|
- | |||||
| 900 | WR78X12402 | Door Asm Foam Fz Bq |
|
- | |||||
| 910 | WR78X12390 | Door Asm Foam Ff Bq |
|
- | |||||
| 920 | WR02X10850 | Plug Button Thimble Bisq |
|
- |
