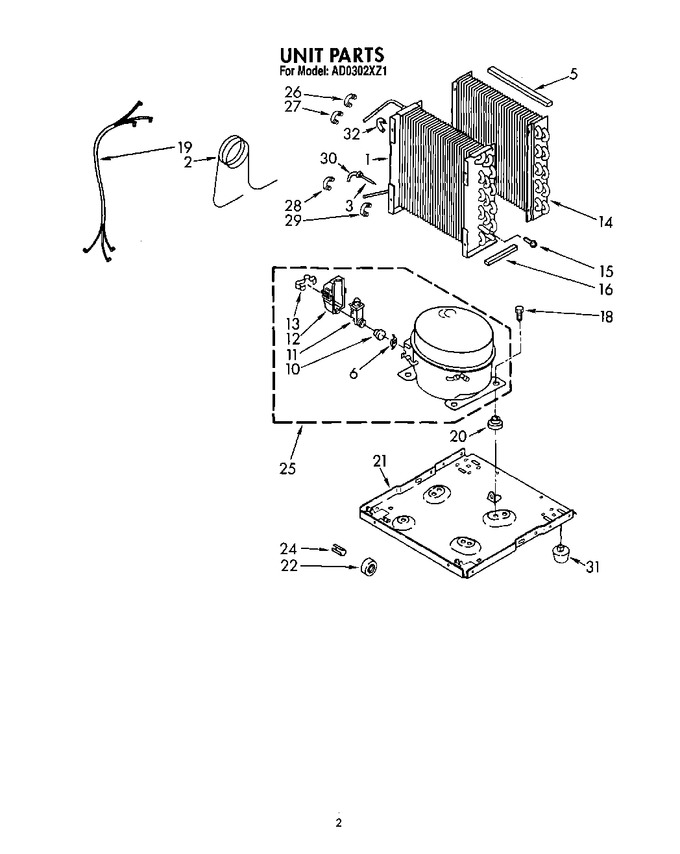

SELECT A DIAGRAM

01 - Air Flow And Control


02 - Unit


03 - Cabinet, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163097		Condenser		Appelez-nous	-
2	1162154		Tube, Restrictor (length 24.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
5	1162348		Seal, Evaporator Top		Appelez-nous	-
6	549086		Spring, Overload (service)		Appelez-nous	-
10	1158790		Overload, Protector (production)		Appelez-nous	-
10	4318051		Overload, Protector (service)		Appelez-nous	-
11	4318052		Relay, Start (service)		Appelez-nous	-
11	1158608		Relay, Start (production)		Appelez-nous	-
12	4318053		Cover Terminal (service)		Appelez-nous	-
12	1157582		Cover, Terminal (production)		Appelez-nous	-
13	938384		Retainer, Cover (production)		Appelez-nous	-
13	549342		Retainer, Cover (service)		Appelez-nous	-
14	1162933		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 8.40
16	1162372		Seal		Appelez-nous	-
18	1163835		Bolt, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
24	489015		Pin, Roller (2)		Appelez-nous	-
25	1157552		Compressor, (complete Assembly)		Appelez-nous	-
26	1158407		Bend Return		Appelez-nous	-
27	708531		Bend, Return		Appelez-nous	-
28	708532		Bend, Return		Appelez-nous	-
29	1156533		Bend Return		Appelez-nous	-
30	854624		Bend, Return		Appelez-nous	-
31	951886		Glide (2)		Appelez-nous	-
32	855199		Bend, Return (17)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
