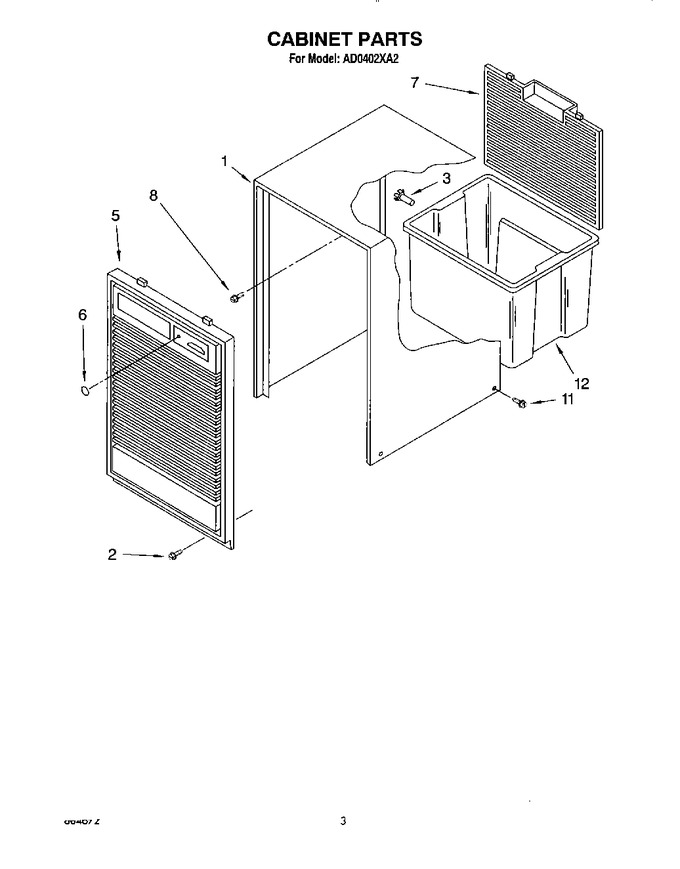

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1164265 | Cabinet |
|
- | |||||
| 2 | WP250830 | Screw (Replaces: 1166018) |
|
$ 8.78 | |||||
| 3 | 998813 | Retainer, Pin (2) (rear Grille) |
|
- | |||||
| 5 | 1164263 | Grille, Front |
|
- | |||||
| 6 | 998846 | Lens, Light |
|
- | |||||
| 7 | 1164264 | Grille, Rear |
|
- | |||||
| 8 | WP488729 | Screw, 8 X 3/8 (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 11 | 1166017 | Screw |
|
- | |||||
| 12 | 212643 | Permagum (4 - 12`` Strips) |
|
Immediately | $ 96.42 | ||||
| 12 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 12 | 646753 | Cap, Condensate Pan |
|
- | |||||
| 12 | WP16123 | Washer, Cap (condensate Pan) (Replaces: 647338) |
|
$ 8.16 | |||||
| 12 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 12 | 505168 | Tape, No Drip (30`) Valve, Access |
|
- | |||||
| 12 | 978026 | 5/16``tube O.d. |
|
Immediately | $ 134.49 | ||||
| 12 | SF5538 | 3/8`` Tube O.d. (Replaces: 978027) |
|
$ 21.64 | |||||
| 12 | 978028 | 1/2`` Tube O.d. |
|
- | |||||
| 12 | 978029 | 5/8`` Tube O.d. |
|
$ 93.85 | |||||
| 12 | 978030 | 3/4`` Tube O.d. |
|
$ 137.25 | |||||
| 12 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 12 | WP978025 | 1/4`` Tube O.d. (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 12 | 1164771 | Pan, Condensate |
|
- |
