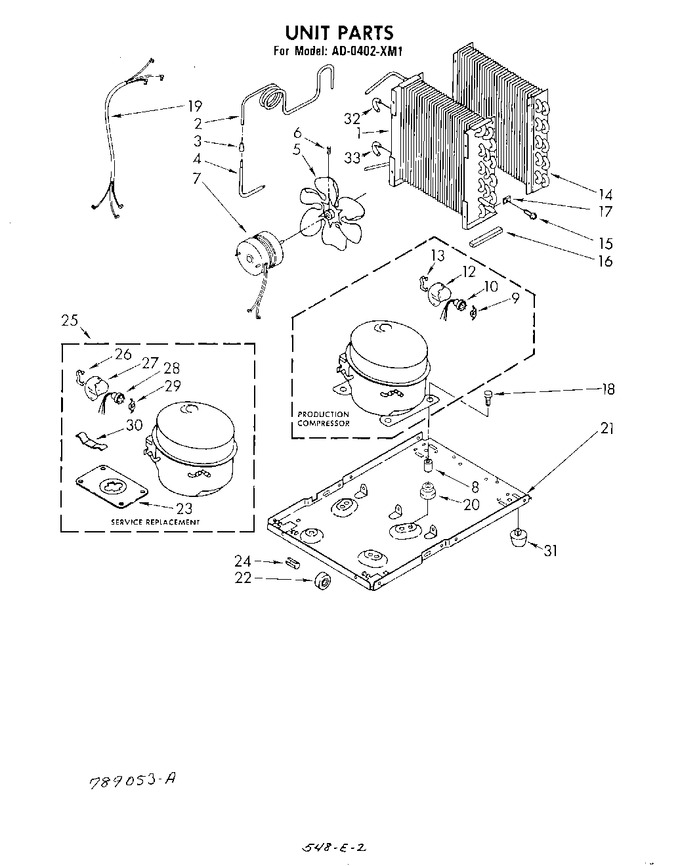

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951345		Condenser		Appelez-nous	-
2	951684		Tube, Restrictor (46.0`` Length)		Appelez-nous	-
3	474013		Strainer, Tube		Appelez-nous	-
4	949896		Rube, Outlet (includes Item 3)		Appelez-nous	-
5	948756		Blade, Fan (includes Item 6)		Appelez-nous	-
6	488035		Setscrew, 1/4-28 X 5/16		Appelez-nous	-
7	949635		Motor, Fan		Appelez-nous	-
8	646498		Sleeve (4)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	951417		Overload, Protector		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	998746		Evaporator		Appelez-nous	-
15	WP488729		Screw, 8 X 3/8 (4)   (Replaces: 487910)			Immediately	$ 7.79
16	998867		Seal		Appelez-nous	-
17	488660		Nut, Speed (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	949976		Base		Appelez-nous	-
22	887625		Roller (2)		Appelez-nous	-
23	998726		Plate, Compressor		Appelez-nous	-
24	876944		Pin, Roller (2)		Appelez-nous	-
25	813527		Compressor, Service (complete Assembly)		Appelez-nous	-
26	643299		Retainer, Cover		Appelez-nous	-
27	589230		Cover, Terminal		Appelez-nous	-
28	643295		Overload		Appelez-nous	-
29	798469		Spring, Overload		Appelez-nous	-
30	643179		Spring, Clip		Appelez-nous	-
31	998725		Glide (2)		Appelez-nous	-
32	855199		Bend, Return (13)		Appelez-nous	-
33	854624		Bend, Return		Appelez-nous	-
