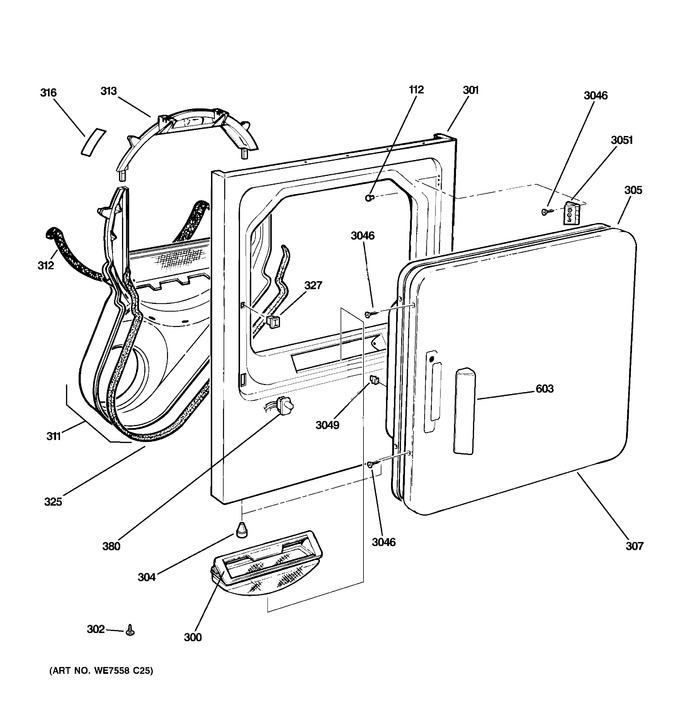

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
5 - Gas Valve & Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01A00517 | Plug Door Rvsbl Wh (Replaces: WR2X8693) |
|
$ 4.37 | |||||
| 300 | WG04F00416 | Filter & Mesh Asm. (Replaces: WE18M28) |
|
Immediately | $ 45.26 | ||||
| 301 | WE20M405 | Front Panel Wh |
|
- | |||||
| 304 | WG04L00345 | Stabilizing Leg Asm. (Replaces: WE2M188) |
|
Immediately | $ 4.04 | ||||
| 305 | WG04L00267 | Inner Door & Gasket Asm. (Replaces: WE10M109) |
|
$ 122.60 | |||||
| 307 | WW01L01133 | Panel Door Outer Wh (Replaces: WE10M102) |
|
$ 166.03 | |||||
| 311 | WE1M573 | Gasket (seal) |
|
- | |||||
| 311 | WW02F00592 | Air Duct Asm (Replaces: WE14M92) |
|
Immediately | $ 188.15 | ||||
| 312 | WE9M30 | Felt |
|
- | |||||
| 316 | WW02A00129 | Slide Green (Replaces: WE1M507) |
|
Immediately | $ 17.47 | ||||
| 316 | WE1M504 | Slide White |
|
Immediately | $ 40.66 | ||||
| 325 | WE01X10217 | Gasket Seal Hsng Exh |
|
- | |||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 380 | WE4M415 | Door Switch |
|
- | |||||
| 603 | WE1M463 | Handle Door Wh |
|
Immediately | $ 42.63 | ||||
| 3046 | WW02A00097 | Screw #8 (Replaces: WE2M196) |
|
$ 3.97 | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M505) |
|
Immediately | $ 9.92 |
