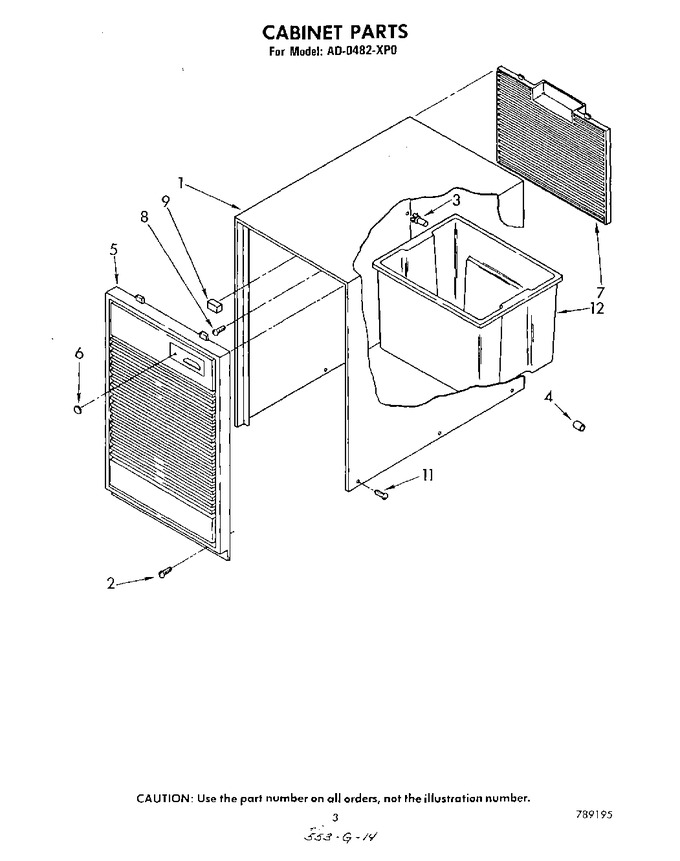

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998821 | Cabinet |
|
- | |||||
| 2 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 489120) |
|
$ 22.22 | |||||
| 3 | 998813 | Retainer, Pin (2) (rear Grille) |
|
- | |||||
| 4 | 998869 | Cap, Thread Cover (2) |
|
- | |||||
| 5 | 950269 | Grille, Front |
|
- | |||||
| 6 | 998846 | Lens, Light |
|
- | |||||
| 7 | 998832 | Grille, Rear |
|
- | |||||
| 8 | WP488729 | Screw, 8 X 3/8 (Replaces: 489073) |
|
Immediately | $ 8.28 | ||||
| 9 | 948584 | Spacer, Grille |
|
- | |||||
| 11 | 489016 | Screw, Tc 8-32 X 3/8 (6) |
|
- | |||||
| 12 | WP16123 | Washer, Cap (condensate Pan) (Replaces: 647338) |
|
$ 8.16 | |||||
| 12 | 646753 | Cap, Condensate Pan |
|
- | |||||
| 12 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 12 | 998801 | Pan, Condensate |
|
- | |||||
| LIT951825 | Sheet, Service Tech |
|
- | ||||||
| LIT789195 | List, Repair Parts |
|
- | ||||||
| LIT998866 | Guide, Use & Care |
|
- |
