SELECT A DIAGRAM

Diagram for 1 - Freezer Door
1 - Freezer Door

Diagram for 2 - Fresh Food Door
2 - Fresh Food Door

Diagram for 3 - Freezer Section
3 - Freezer Section

Diagram for 4 - Evaporator Instructions
4 - Evaporator Instructions

Diagram for 5 - Freezer Shelves
5 - Freezer Shelves

Diagram for 6 - Ice Maker & Dispenser
6 - Ice Maker & Dispenser

Diagram for 7 - Fresh Food Section
7 - Fresh Food Section

Diagram for 8 - Fresh Food Shelves
8 - Fresh Food Shelves

Diagram for 9 - Sealed System & Mother Board
9 - Sealed System & Mother Board


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
6 WR01A01440 Set Screw   (Replaces: WR01X10450) Special Order $ 8.58

7 WR12X10744 Tubular Handle Asm Appelez-nous -
9 WR02X12800 Fastener Handle Ss Appelez-nous -
12 WR01A00225 Stop Door Bk   (Replaces: WR02X10814) Special Order $ 12.40

16 WR01F01557 Cam Closure Ff Bk   (Replaces: WR02X10779) Special Order $ 32.88

103 WR24X10157 Gasket Door Ff Bk Appelez-nous -
106 WR01L14045 Door Dairy   (Replaces: WR22X10012) Special Order $ 20.64

107 WR71X10781 Door Bin Ff Adj Appelez-nous -
108 WR71X10858 Shelf Module Fixed Ff Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
910 WR78X11636 Door Foam Asm Ff Ss Appelez-nous -
911 WR01X10233 Thimble Door Top Bk Appelez-nous -
912 WR01X10232 Thimble Door Btm Bk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

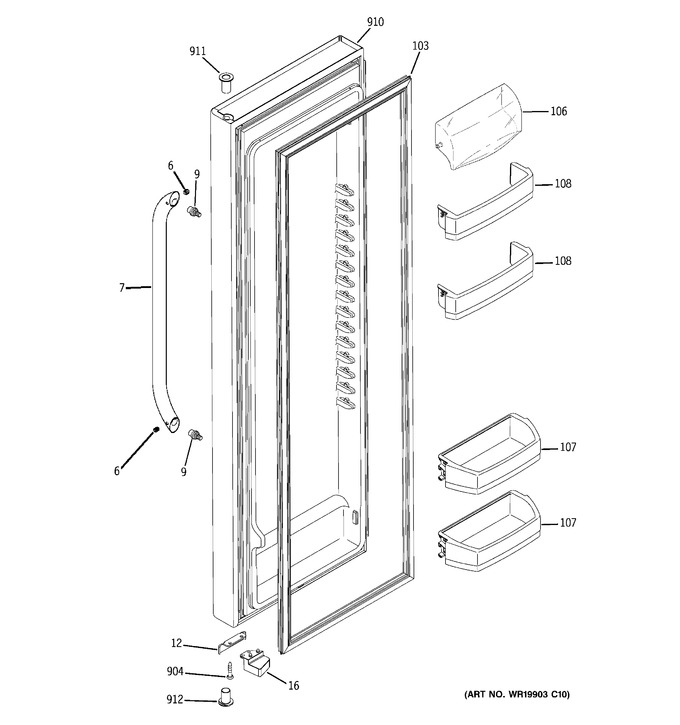

Diagram for GSS23WSTMSS
