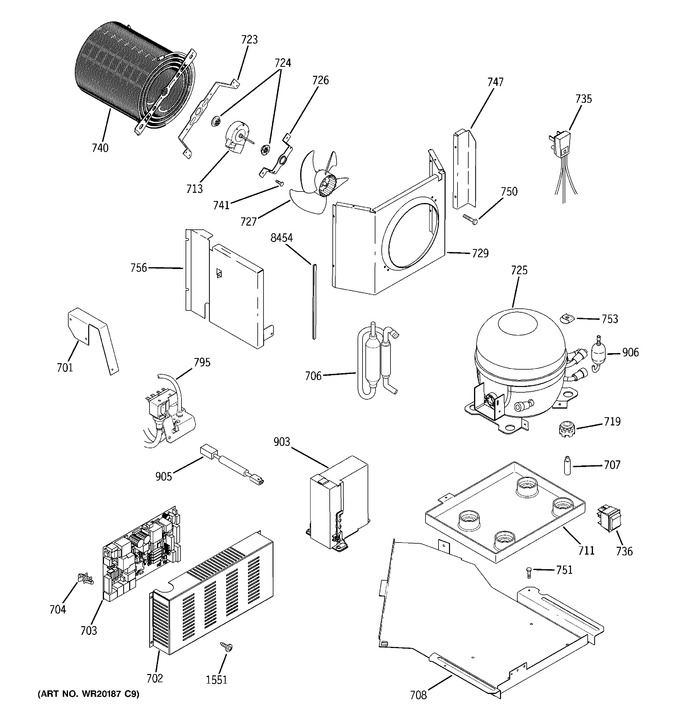

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Controls & Components
3 - Freezer Section, Trim & Components
4 - Shelves & Drawers
5 - Sealed System & Mother Board
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 701 | WR02X12482 | Bracket Water Filter Mtg |
|
- | |||||
| 702 | WR02X12570 | Cover Motherboard |
|
- | |||||
| 703 | WR01F02880 | Board Asm Main Control (Replaces: WR55X11070) |
|
Immediately | $ 329.91 | ||||
| 704 | WR01X10301 | Main Board Stand Offs |
|
- | |||||
| 706 | WR74X10125 | Dryer Bifurcated Xh9 |
|
- | |||||
| 707 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 708 | WR17X10687 | Pan Evap. Drain |
|
- | |||||
| 711 | WR17X12348 | System Pan |
|
- | |||||
| 713 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 719 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 723 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 27.00 | ||||
| 724 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 725 | WG03F00154 | Compressor Vcc3 Repl. Ki (Replaces: WR87X10111) |
|
$ 1,117.00 | |||||
| 726 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 727 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 729 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 735 | WG03F00911 | Power Cord Asm (Replaces: WR23X10300) |
|
$ 85.41 | |||||
| 736 | WR23X10571 | Master Light Switch |
|
- | |||||
| 740 | WR84X10090 | Condenser & Bracket Asm |
|
- | |||||
| 741 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 751 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 756 | WR17X12352 | Baffle Asm |
|
- | |||||
| 795 | WR57X10075 | Valve Water Asm |
|
- | |||||
| 903 | WR55X10685 | Inverter Asm Comp Mount |
|
- | |||||
| 905 | WR23X10392 | Harness Ground |
|
- | |||||
| 906 | WG03L02186 | Accumulator (Replaces: WR86X10038) |
|
$ 76.77 | |||||
| 1551 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 8454 | WR38X10190 | Edge Trim 1.1257" |
|
- | |||||
| WG03F00257 | Thermodisque, Ã#vaporateur |
|
$ 68.66 | ||||||
| WG03F00389 |
|
$ 6.09 | |||||||
| WG03F00412 | Circuit Imprimﾃ# Asm, Monogram |
|
$ 210.59 | ||||||
| WG03F00417 | Machine A Glacons |
|
Immediately | $ 207.39 | |||||
| WG03L00113 | Joint De La Porte Du CongÃ#lateur |
|
Immediately | $ 168.52 | |||||
| WG03A00012 | Manchon |
|
$ 49.33 | ||||||
| WG03L00728 | Joint De La Porte, Monogram |
|
$ 175.21 | ||||||
| WG03L01824 | Boulon, Monogram |
|
$ 29.57 | ||||||
| WG03L02367 | Bras Nylon |
|
$ 75.81 | ||||||
| WG04A00766 | Inversuer Asm. |
|
Immediately | $ 554.11 | |||||
| WG03L05738 | Grill Asm Pro |
|
$ 1,455.31 | ||||||
| WG03L00317 | Charniﾃ#re Supﾃ#rieur De La Porte, Monog |
|
$ 92.25 | ||||||
| WG03A00052 | Screw |
|
$ 4.20 | ||||||
| WG03F00014 | Activeur De Bras De La Porte |
|
$ 16.32 | ||||||
| WG03F00096 | Ens Base Droit |
|
$ 221.79 |
