SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Unit Parts

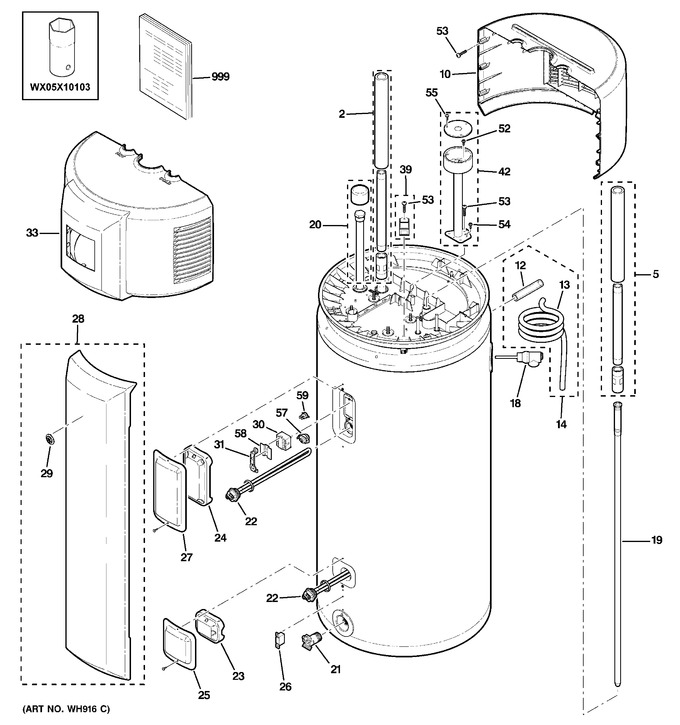

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WS07X10026		Outlet Pipe Kit		Appelez-nous	-
5	WS07X10025		Inlet Pipe Kit		Appelez-nous	-
10	WS31X10045		Rear Shroud		Appelez-nous	-
12	WS07X10027		Condensate Tube, 3 Inch		Appelez-nous	-
13	WS07X10028		Condensate Tube, 6 Ft		Appelez-nous	-
14	WS35X10059		Installation Kit		Appelez-nous	-
18	WS06X10011		Temp & Pres Relief Valve		Appelez-nous	-
19	WS07X10029		Dip Tube Asm		Appelez-nous	-
20	WS02X10060		Anode Rod & Insulation		Appelez-nous	-
21	WS06X10012		Drain Valve		Appelez-nous	-
22	WS51X10001		Heat Element & Gasket		Appelez-nous	-
23	WS82X10003		Lower Element Eps Cover		Appelez-nous	-
24	WS82X10004		Upper Element Eps Cover		Appelez-nous	-
25	WS31X10046		Lower Element Cover		Appelez-nous	-
26	WS02X10061		Magnet Asm		Appelez-nous	-
27	WS31X10047		Upper Element Cover		Appelez-nous	-
28	WS31X10048		Front Cover Asm		Appelez-nous	-
29	WS34X10019		Ge Badge		Appelez-nous	-
30	WS21X10050		Tco2 Dlb (170f)		Appelez-nous	-
31	WS28X10069		Tco Bracket		Appelez-nous	-
33	WS31X10049		Front Shroud		Appelez-nous	-
39	WS35X10060		Dsm Kit		Appelez-nous	-
42	WS31X10050		Junction Box Kit		Appelez-nous	-
52	WS02X10065		10 Pk Ground Screw, Jcn		Appelez-nous	-
53	WS02X10066		10 Pk Pan Head Phillips		Appelez-nous	-
54	WS02X10067		10 Pk Ground Screw		Appelez-nous	-
55	WS02X10068		10 Pk Phillips Screw Lcd		Appelez-nous	-
57	WS21X10051		Tco1 Slb (160f)		Appelez-nous	-
58	WS82X10005		Tco Dielectric		Appelez-nous	-
59	WS17X10005		T2 Tank Thermistor		Appelez-nous	-
999	49-50254		Pm Use & Care		Appelez-nous	-
999	WS03X10071		Mastic T3b		Appelez-nous	-
999	WS03X10071		Mastic T3a   (Replaces: WS03X10070)		Appelez-nous	-
999	31-75007		Pm Mini Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
