SELECT A DIAGRAM

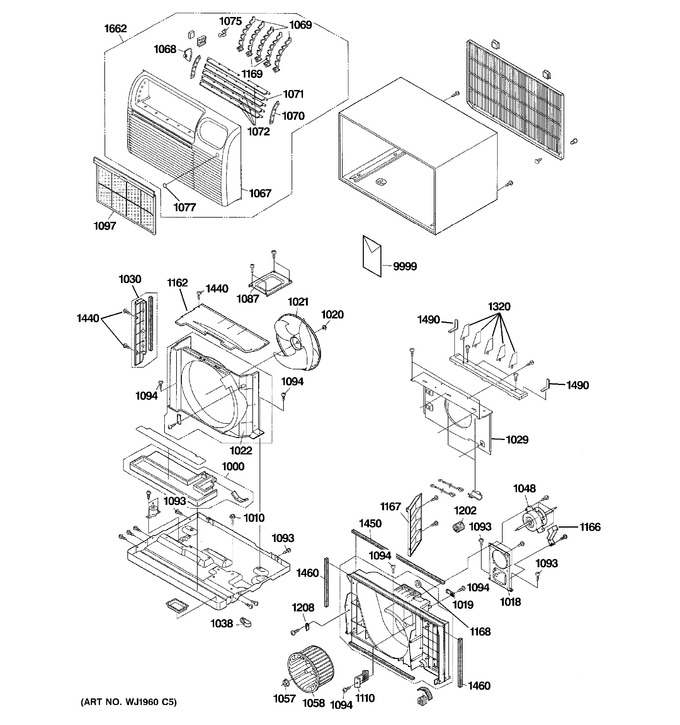

1 - Cabinet & Components
2 - Control Parts
3 - Sealed System & Components
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1000 | WJ70X10052 | Drain Tray |
|
- | |||||
| 1010 | WJ01X10031 | Stud Bolt |
|
- | |||||
| 1018 | WJ65X10117 | Fan Motor Angle |
|
- | |||||
| 1019 | WJ01X10159 | Clamp |
|
- | |||||
| 1020 | WJ01X10283 | Special Nut |
|
- | |||||
| 1021 | WJ73X10157 | Propeller Fan O/d |
|
- | |||||
| 1022 | WJ76X10287 | Condenser Shroud K |
|
- | |||||
| 1029 | WJ78X10056 | Orifice |
|
- | |||||
| 1030 | WJ79X10158 | Condenser Plate |
|
- | |||||
| 1038 | WJ03X10001 | Clamp |
|
- | |||||
| 1048 | WJ94X10309 | Fan Motor |
|
- | |||||
| 1048 | WJ94X10310 | Fan Motor |
|
- | |||||
| 1057 | WJ01X10284 | Special Nut |
|
$ 5.96 | |||||
| 1058 | WJ73X10158 | Centrifugal Fan |
|
- | |||||
| 1067 | WJ71X10224 | Front Panel |
|
- | |||||
| 1068 | WJ71X10039 | Notch Plate |
|
- | |||||
| 1069 | WJ01X10143 | Louver Holder-b |
|
- | |||||
| 1070 | WJ71X10225 | Louver Link |
|
- | |||||
| 1071 | WJ71X10226 | Horizontal Louver A |
|
- | |||||
| 1072 | WJ71X10227 | Horizontal Louver B |
|
- | |||||
| 1075 | WJ02X10025 | Notch Spring |
|
- | |||||
| 1077 | WJ07X10246 | Badge |
|
- | |||||
| 1087 | WJ65X10116 | Brace |
|
- | |||||
| 1093 | WJ01X10392 | Special Screw |
|
- | |||||
| 1094 | WJ01X10012 | Special Screw |
|
- | |||||
| 1097 | WJ85X10041 | Air Filter |
|
$ 53.38 | |||||
| 1110 | WJ01X10291 | Damper Frame |
|
- | |||||
| 1162 | WJ79X10199 | Shroud Cover K7l |
|
- | |||||
| 1166 | WJ79X10200 | Motor Cover |
|
- | |||||
| 1167 | WJ76X10235 | Bulkhead Plate |
|
- | |||||
| 1168 | WJ01X10297 | Seal Motor |
|
- | |||||
| 1169 | WJ01X10142 | Louver Holder-a |
|
- | |||||
| 1202 | WJ45X10016 | Insulator |
|
- | |||||
| 1208 | WJ66X10040 | Stopper |
|
- | |||||
| 1320 | WJ71X10454 | Louver |
|
- | |||||
| 1440 | WP01X10021 | Special Screw |
|
- | |||||
| 1450 | WJ82X10040 | Cabinet-pe |
|
- | |||||
| 1460 | WJ82X10041 | Cabinet-pe |
|
- | |||||
| 1490 | WJ11X10021 | L-base-plate-pe |
|
- | |||||
| 1662 | WJ71X10654 | Front Panel Asm |
|
- | |||||
| 9999 | 31-61526 | Mini-manual |
|
- | |||||
| 9999 | 49-7597-2 | Use & Care / Ii Manual |
|
- |
