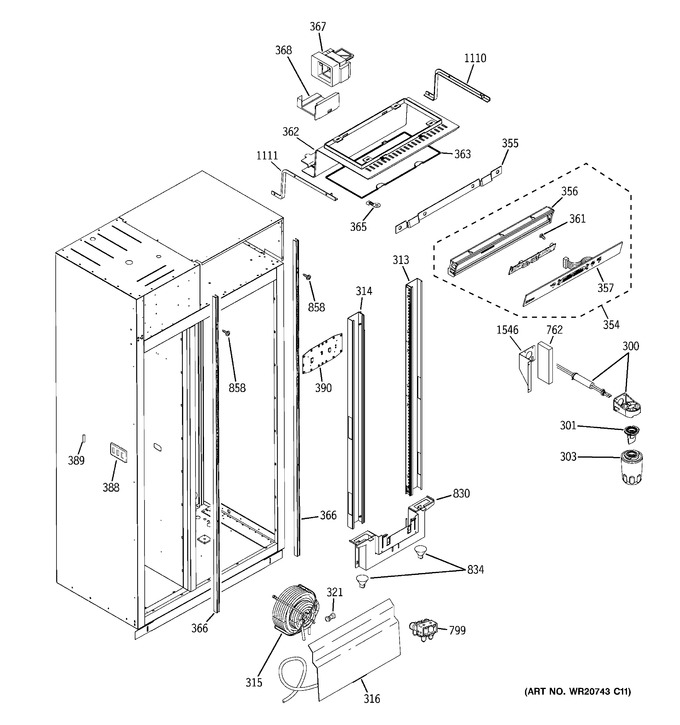

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	WR02X13046		Water Filter & Head Asm		Appelez-nous	-
301	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
303	PMMWF		Filter Canister   (Replaces: MWF)			Immediately	$ 81.88
313	WR17X12532		Airtower Ff 36		Appelez-nous	-
314	WR02X13317		Foam Airtower Asm		Appelez-nous	-
315	WG03F03757		Water Tank Asm   (Replaces: WR17X12702)				$ 60.18
316	WR02X13165		Cover Water Tank		Appelez-nous	-
354	WR55X10849		Hmi Asm		Appelez-nous	-
355	WR01X10842		Hmi Holder Tab 36		Appelez-nous	-
356	WR74X10250		Housing Control		Appelez-nous	-
357	WR55X10827		Membrane Sxs Disp		Appelez-nous	-
361	WR02X11200		4-40 X 1/4 Ph Sms		Appelez-nous	-
362	WR17X12820		Bracket Ceiling		Appelez-nous	-
363	WR02X12834		Ceiling Light Shield		Appelez-nous	-
365	WR02X11203		Latch Light		Appelez-nous	-
366	WR17X12524		Track Ff Shelf		Appelez-nous	-
367	WR02X12832		Damper Foam Asm 36		Appelez-nous	-
368	WG03A00020		Kit Damper Monogram   (Replaces: WR49X10107)				$ 240.88
388	WR02X12839		Grille Sensor		Appelez-nous	-
389	WR55X10030		Sensor Temperature		Appelez-nous	-
390	WR55X11007		Board Led Light Asm		Appelez-nous	-
762	WR14X10296		Foam Strip Front		Appelez-nous	-
799	WG03F00684		Water Valve Asm   (Replaces: WR57X10024)				$ 128.06
830	WR12X10922		Housing Bulb Asm 36ff		Appelez-nous	-
834	WR02X11183		Halogen Bulb Light Colum		Appelez-nous	-
858	WR01X10840		Scr 10-24 F Pnp 1.25 S		Appelez-nous	-
1110	WR01X10927		Trim Ceiling Bracket Rh		Appelez-nous	-
1111	WR01X10928		Trim Ceiling Bracket Lh		Appelez-nous	-
1546	WR02X12828		Water Filter Bracket		Appelez-nous	-
