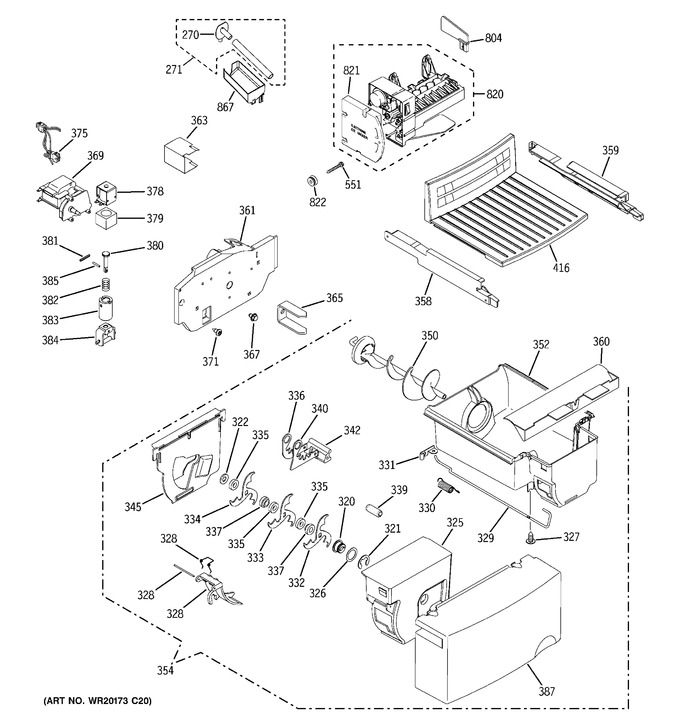

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
270	WG03F00304		Grommet And Gasket Asm   (Replaces: WR02X10967)				$ 23.82
271	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
320	WR01F03224		Nut Auger Frt Disp   (Replaces: WR01X10315)				$ 6.35
321	WR1X1367		Retainer Ring E		Appelez-nous	-
322	WR02X11266		Spacer Crusher Middle		Appelez-nous	-
325	WR01F01024		Housing Crusher Disp   (Replaces: WR17X11505)				$ 21.11
326	WR01A01060		Washer   (Replaces: WR1X1366)				$ 4.20
327	WR01X10607		Scr 8-18 Ab Phr 1/2 S		Appelez-nous	-
328	WR2X4143		Pin Deflector Disp		Appelez-nous	-
328	WR2X4561		Spring Ice Deflector		Appelez-nous	-
328	WR17X10703		Deflector Ice Disp		Appelez-nous	-
329	WR17X11403		Wire Actuator Disp		Appelez-nous	-
330	WR01A00911		Spring Deflector   (Replaces: WR02X10583)				$ 4.20
331	WR02X10580		Retainer Spring		Appelez-nous	-
332	WR17X11239		Blades Moving Disp		Appelez-nous	-
333	WR17X11240		Blades Moving Disp		Appelez-nous	-
334	WR17X11241		Blades Moving Disp		Appelez-nous	-
335	WR2X4139		Spacer Crusher Middle		Appelez-nous	-
336	WR17X1009		Blade Stationary Disp		Appelez-nous	-
337	WR2X4138		Spacer Crusher Stationar		Appelez-nous	-
339	WR2X4141		Pin Spiral		Appelez-nous	-
340	WR17X2058		Blade Stationary Disp		Appelez-nous	-
342	WR02X10691		Stationary Blades Asm		Appelez-nous	-
345	WR01L00753		Cover Crusher Hsg Disp   (Replaces: WR17X11497)				$ 30.98
350	WR01F00640		Auger Asm Disp   (Replaces: WR17X11705)			Immediately	$ 54.86
352	WR30X10084		Bucket Ice Disp		Appelez-nous	-
354	WR17X11419		Bucket & Auger Asm		Appelez-nous	-
358	WR01F03332		Glide Bucket Lh Disp   (Replaces: WR72X10233)				$ 63.53
359	WR72X10234		Glide Bucket Rh Disp		Appelez-nous	-
360	WR17X11449		Diverter Overflow		Appelez-nous	-
361	WR17X12810		Cover Motor Front		Appelez-nous	-
363	WR17X12735		Cover, Auger Motor Rear		Appelez-nous	-
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
367	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
369	WG03F00432		Auger Motor   (Replaces: WR60X10258)				$ 193.30
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X10551		Harness Motor Disp		Appelez-nous	-
378	WR01F00328		Solenoid & Arm Asm   (Replaces: WR62X58)				$ 151.81
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR02X13138		Plunger Solenoid		Appelez-nous	-
381	WR01F00328		Pin Spiral   (Replaces: WR2X4257)				$ 151.81
382	WR02X13305		Spring Solenoid Linkage		Appelez-nous	-
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X1065)				$ 151.81
384	WR02X13139		Stirrup Solenoid Disp		Appelez-nous	-
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
387	WR17X10779		Cover Bucket Disp		Appelez-nous	-
416	WR17X12911		Shelf Chiller		Appelez-nous	-
551	WR01A01042		Scr 8-18 Ab Rndw 5/8 Ss   (Replaces: WR01X10789)				$ 3.97
804	WR29X10054		Im Guardrail		Appelez-nous	-
820	IM6D		Mech Ice Maker Asm   (Replaces: WR30X10093)			Immediately	$ 330.86
821	WR29X10080		Cover		Appelez-nous	-
822	WR01F00849		Grommet   (Replaces: WR02X10678)			Immediately	$ 3.97
867	WR29X10058		Cup Fill Im		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
