SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board

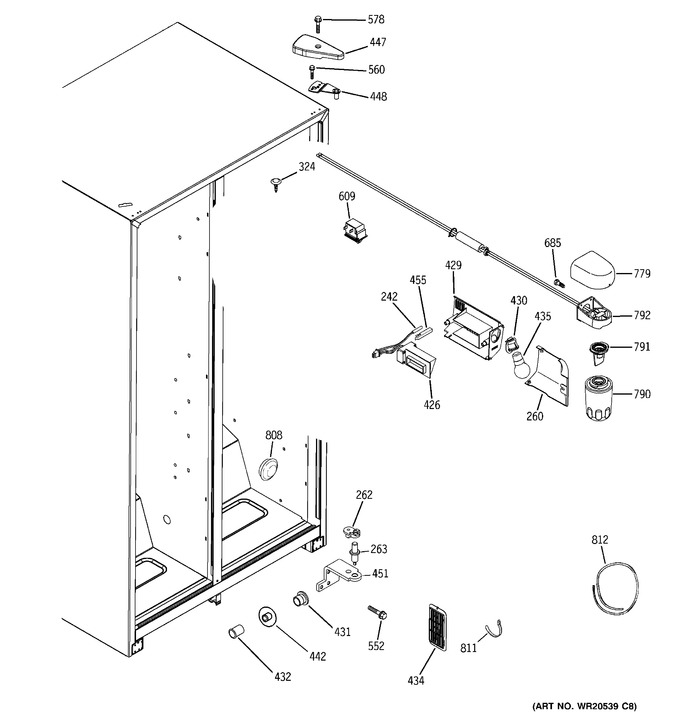

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
242	WR50X10081		Sensor Asm Ff		Appelez-nous	-
260	WR17X12114		Shield Light		Appelez-nous	-
262	WR02X11743		Hinge Cam Riser		Appelez-nous	-
263	WR02X12331		Pin Hinge Btm Adj		Appelez-nous	-
324	WG03F01629		Plug Button Sm Wh   (Replaces: WR2X7051)				$ 4.78
426	WR02X12261		Cover Damper		Appelez-nous	-
429	WR02X12467		Damper Cover Asm		Appelez-nous	-
430	WR02X10645		Socket Lamp		Appelez-nous	-
431	WR2X9299		Cap Mullion Duct		Appelez-nous	-
432	WR02X10561		Duct Mullion		Appelez-nous	-
434	WR17X10262		Grille Air Return		Appelez-nous	-
435	60A		Lamp 60w Appl		Appelez-nous	-
442	WR02X10763		Cover Meat Pan Duct		Appelez-nous	-
447	WR02X11482		Cover Hinge Bk		Appelez-nous	-
447	WR02X11480		Cover Hng Wht		Appelez-nous	-
448	WR13X10285		Hinge Top & Pin Asm Ff		Appelez-nous	-
451	WR13X10724		Ff Hinge Btm & Pin Asm		Appelez-nous	-
455	WR02X12258		Cover Sensor Ff		Appelez-nous	-
552	WR01X10600		Scr 12-24 Tt Hx .811 S Z		Appelez-nous	-
560	WR01X10650		Scr 12-24 Ca Hx 7/8 S		Appelez-nous	-
578	WR01F03225		Screw Hinge Cover   (Replaces: WR01X10379)				$ 3.97
609	WR23X10481		Switch Light		Appelez-nous	-
685	WR01X10603		Scr 8-18 Ab Hxw 3/4 S		Appelez-nous	-
779	WR02X10773		Cover Water Filter		Appelez-nous	-
790	PMMWF		Filter Canister   (Replaces: MWF)			Immediately	$ 81.88
791	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
792	WR01F00791		Filter Asm And Tube   (Replaces: WR17X11920)			Immediately	$ 24.66
808	WR02X11594		Plug Hole		Appelez-nous	-
811	WR02X11607		Wire Tie		Appelez-nous	-
812	WR17X12420		Tube Plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
