SELECT A DIAGRAM

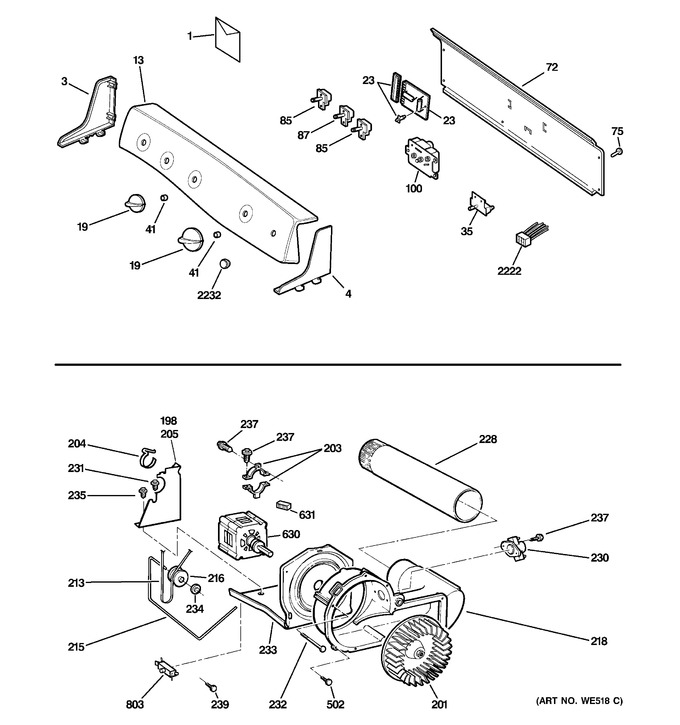

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90290 | Use & Care Manual |
|
- | |||||
| 1 | 31-16224 | Installation Instruction |
|
- | |||||
| 1 | 31-16166 | Mini Manual |
|
- | |||||
| 3 | WE19M1461 | Dryer End Cap Lh Wh |
|
- | |||||
| 4 | WE19M1460 | Dryer End Cap Rh Wh |
|
- | |||||
| 13 | WE19M1505 | Backsplash Asm |
|
- | |||||
| 19 | WE1M660 | Knob Asm |
|
- | |||||
| 23 | WE1M418 | Locking C.b. Support |
|
- | |||||
| 23 | WE1M419 | H. Edge Connector |
|
- | |||||
| 23 | WE4M272 | Pc Board W/beeper |
|
$ 194.49 | |||||
| 41 | WH01X10106 | Clip Knob |
|
- | |||||
| 72 | WE19M1310 | Back Panel |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 85 | WE4M399 | R.switch (xcare) On/off |
|
- | |||||
| 87 | WE4M406 | Rotary Switch 4temp Sens |
|
- | |||||
| 100 | WG04F04220 | Timer Plas. Shaft (Replaces: WE4M365) |
|
$ 202.73 | |||||
| 198 | WE2M200 | Screw Ground |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm Spring (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Idler Pulley (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal, Hsng Exh |
|
- | |||||
| 218 | WE14M93 | Blower Housing |
|
- | |||||
| 218 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | WG04F01127 | T'stat Bias Drum Out (Replaces: WE4M216) |
|
Immediately | $ 14.92 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M35 | Motor Plate (e-coat) |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WE2X263 | Screw |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screw |
|
- | |||||
| 502 | WW02A00031 | Screw #10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M37 | Motor Thrd Shaft & Pully |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 | ||||
| 2222 | WE5M36 | Harness Elect.w/ T-stats |
|
- | |||||
| 2232 | WE1M661 | Button Push |
|
- |
