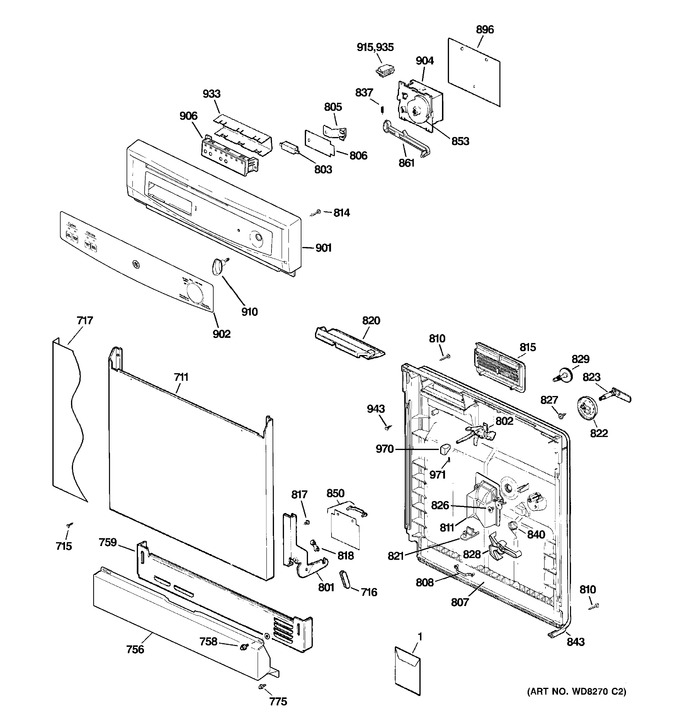

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30490		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30490-2		Pm Mini Manual		Appelez-nous	-
1	31-30219		Pm Instruction Install		Appelez-nous	-
1	49-55023		Pm Manual Use & Care		Appelez-nous	-
711	WG04F01726		Panel Front Long Bk   (Replaces: WD31X10024)				$ 86.32
711	WG04L00406		Panel Front Long Wh   (Replaces: WD31X10025)				$ 77.88
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 6.35
756	WG04F01716		Panel Access Finished   (Replaces: WD27X10223)				$ 57.27
756	WG04L01506		Panel Access Finished   (Replaces: WD27X10225)				$ 54.40
758	WD02X10162		Scr 8-32 Hxp 1/4 S		Appelez-nous	-
759	WG04L00713		Panel Toe Kick Wh   (Replaces: WD27X10066)				$ 41.29
759	WG04L00718		Panel Toe Kick Bk   (Replaces: WD27X10068)				$ 38.12
775	WD02X10126		Scr 10-16 Hxw 3/8 S		Appelez-nous	-
775	WD02X10127		Scr 10-16 Hxw 3/8 S		Appelez-nous	-
801	WD14X10030		Arm Hinge		Appelez-nous	-
801	WD14X10029		Arm Hinge		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 55.68
803	WW02F00249		Switch Interlock   (Replaces: WD21X10261)			Immediately	$ 17.47
805	WG04F01681		Leaf Switch   (Replaces: WD1X1363)				$ 12.71
806	WD12X370		Shield Switch		Appelez-nous	-
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 87.93
808	WD01X10110		Clip Harness		Appelez-nous	-
810	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
810	WD2X296		Screw 8-32x5/8		Appelez-nous	-
811	WG04F01660		Tank Rinse Aid Asm   (Replaces: WD12X10264)				$ 73.11
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WD12X10026		Vent		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
820	WD1X1467		Vent Pad				$ 6.89
821	WD01X10415		Clip Rinse Aid Tank		Appelez-nous	-
822	WG04F01675		Cover Det Cup   (Replaces: WD16X297)				$ 12.71
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 58.52
826	WD02X10130		Scr 8-18 B Por 1/4 Ss		Appelez-nous	-
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10011)				$ 57.25
829	WG04A04026		Cap Fill   (Replaces: WD12X10284)			Immediately	$ 57.25
837	WD3X749		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.97
843	WG04L00216		Gasket Door   (Replaces: WD08X10057)			Immediately	$ 45.20
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
853	WD16X10010		Cam Timer		Appelez-nous	-
861	WG04L00347		Detergent Timer Lever   (Replaces: WD12X324)				$ 57.25
896	WD12X10259		Drip Shield		Appelez-nous	-
901	WD34X11328		Escutcheon		Appelez-nous	-
901	WD34X11304		Escutcheon & Insert Asm		Appelez-nous	-
901	WD34X11307		Escutcheon & Insert Asm		Appelez-nous	-
901	WD34X11330		Escutcheon		Appelez-nous	-
902	WD34X11349		Insert Escutcheon		Appelez-nous	-
902	WD34X11351		Insert Escutcheon		Appelez-nous	-
904	WG04F04919		Timer   (Replaces: WD21X10349)				$ 137.51
906	WD21X10266		Switch Pushbutton		Appelez-nous	-
910	WG04F01165		Knob Timer Bk   (Replaces: WD09X10024)				$ 12.71
910	WG01L00280		Knob Timer Wh   (Replaces: WD09X10025)				$ 6.35
915	WD01X10349		Housing Terminal		Appelez-nous	-
933	WD12X10154		Switch Cover		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
970	WG04L04133		Knob Latch Handle Wh   (Replaces: WD9X352)				$ 4.04
970	WG04L00703		Knob Latch Handle Bk   (Replaces: WD9X351)			Immediately	$ 6.35
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-
