View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel & Cooktop

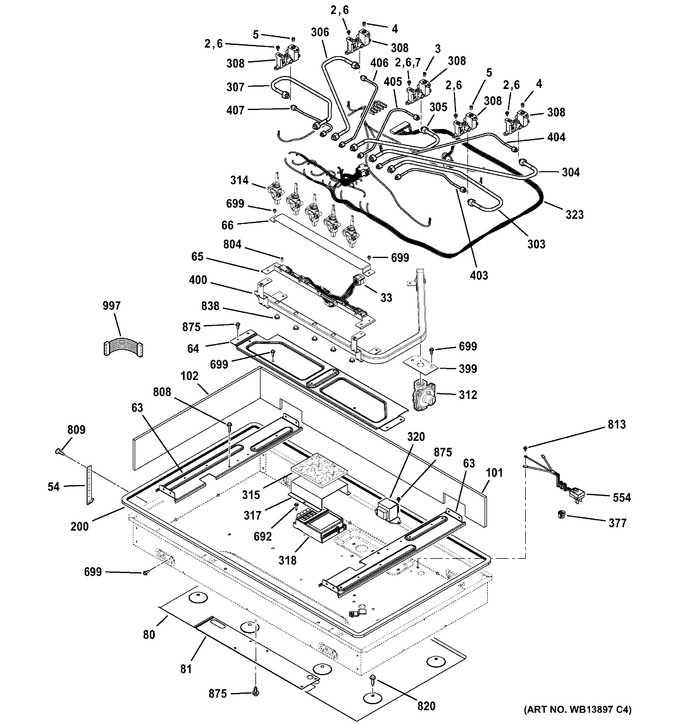

2 - Gas & Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB28T10148 | High Alt Orifice Lp Sim |
|
- | |||||
| 2 | 229C5530P001 | Label Wire Diag |
|
- | |||||
| 2 | WG02F01183 | Orifice Spud (ng Simmer) (Replaces: WB28T10159) |
|
Immediately | $ 15.88 | ||||
| 2 | WS01F01438 | Orifice Spud Simmer Lp (Replaces: WB28T10118) |
|
Immediately | $ 4.17 | ||||
| 3 | WB28T10160 | High Alt Orifice Ng |
|
- | |||||
| 3 | WB28T10147 | High Alt Orifice Lp Main |
|
- | |||||
| 3 | WG02F01190 | Orifice Spud (ng Main) (Replaces: WB28T10155) |
|
$ 15.88 | |||||
| 3 | WG02F02247 | Orifice Spud Lp Main (Replaces: WB28T10158) |
|
$ 6.35 | |||||
| 4 | WB28T10162 | High Alt Orifice Lp Main |
|
- | |||||
| 4 | WS01F01437 | Orifice Spud Lp Main (Replaces: WB28T10117) |
|
$ 4.17 | |||||
| 4 | WB28T10157 | High Alt Orifice Ng Main |
|
- | |||||
| 4 | WB28T10161 | High Alt Orifice Ng |
|
- | |||||
| 5 | WG02F02246 | Orifice Spud (ng Main) (Replaces: WB28T10156) |
|
$ 12.22 | |||||
| 6 | WB28T10164 | High Alt Sim Orifice Ng |
|
- | |||||
| 7 | WB28T10163 | Hi Alt Sim Orifice Ng |
|
- | |||||
| 33 | WB18T10411 | Harness W/led Asm |
|
- | |||||
| 54 | WG02A00689 | Hold Down Bracket (Replaces: WB2K5328) |
|
$ 6.35 | |||||
| 63 | WB02T10314 | Bracket Burner Supt Lt |
|
- | |||||
| 63 | WB02T10313 | Bracket Burner Supt Rt |
|
- | |||||
| 64 | WB02T10312 | Bracket Burner Support |
|
- | |||||
| 65 | WG02A00010 | Bracket Light (Replaces: WB02T10325) |
|
$ 54.47 | |||||
| 66 | WB02T10326 | Cover Light |
|
- | |||||
| 80 | WB35T10141 | Shield Burn Box Btm |
|
- | |||||
| 81 | WB02T10316 | Cover Access |
|
- | |||||
| 101 | WB35T10139 | Insulation Frt & Rear |
|
- | |||||
| 101 | WB35T10154 | Insulation Front |
|
- | |||||
| 102 | WB35T10140 | Insulation Side |
|
- | |||||
| 200 | WB04T10063 | Gasket Burner Box |
|
- | |||||
| 303 | WB28T10166 | Tube & Nut Asm Rf |
|
- | |||||
| 304 | WB28T10167 | Tube & Nut Asm Rr |
|
- | |||||
| 305 | WB28T10168 | Tube & Nut Asm Centre |
|
- | |||||
| 306 | WB28T10169 | Tube & Nut Asm Lr |
|
- | |||||
| 307 | WB28T10170 | Tube & Nut Asm Lf |
|
- | |||||
| 308 | WB28T10114 | Injet Burner 18k |
|
- | |||||
| 312 | WB19T10076 | Regulator Convert Press |
|
- | |||||
| 314 | WB19T10083 | Valve Gas |
|
- | |||||
| 315 | WB35T10142 | Insulation Spark Module |
|
- | |||||
| 317 | WB02T10317 | Cover Spark Module |
|
- | |||||
| 318 | WG02F01108 | Module Spark (Replaces: WB13T10076) |
|
$ 225.95 | |||||
| 320 | WG02F05154 | Transformer (Replaces: WB27T10856) |
|
Immediately | $ 198.56 | ||||
| 323 | WG02F11447 | Switch Harness (Replaces: WB18T10410) |
|
Immediately | $ 100.83 | ||||
| 377 | WB02T10315 | Grommet Strain Relief |
|
- | |||||
| 377 | WB2K5275 | Strain Relief-rt Angle |
|
- | |||||
| 399 | WB04T10065 | Seal Manifold |
|
- | |||||
| 400 | WB28T10165 | Pipe Manifold Asm 36" |
|
- | |||||
| 403 | WB28T10171 | Tube & Nut Asm Sim Rf |
|
- | |||||
| 404 | WB28T10172 | Tube & Nut Asm Sim Rr |
|
- | |||||
| 405 | WB28T10173 | Tube & Nut Asm Sim Ctr |
|
- | |||||
| 406 | WB28T10174 | Tube & Nut Asm Sim Lr |
|
- | |||||
| 407 | WB28T10175 | Tube & Nut Asm Sim Lf |
|
- | |||||
| 554 | WB08T10015 | Cord Range |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 808 | WB01T10058 | Screw 10-16 Ab Hxw 750 S |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 813 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 820 | WB1X1424 | Screw, Transformer |
|
- | |||||
| 838 | WB1X1121 | Screw |
|
- | |||||
| 875 | WB01T10046 | Wz4x245d |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 997 | WB18T10431 | Lead Wire |
|
- | |||||
| 997 | WB18T10433 | Lead Wire 26 Inch |
|
- | |||||
| 997 | WB18T10429 | Lead Wire |
|
- | |||||
| 997 | WB18T10432 | Lead Wire 14 Inch |
|
- | |||||
| 997 | WB18T10430 | Lead Wire |
|
- | |||||
| WG02F00675 | Harness W/led Asm, Monogram |
|
$ 338.77 | ||||||
| WG02F05154 | Transformer |
|
Immediately | $ 198.56 | |||||
| WG02F00772 | Injet Burner 18k |
|
$ 57.91 | ||||||
| WG02L08186 | Maintop Graphics Asm 36 |
|
$ 403.84 | ||||||
| WG02A00523 | Screw, Monogram |
|
$ 4.66 | ||||||
| WG02A00189 | Screw 8-32 |
|
Immediately | $ 6.35 | |||||
| WG02A00081 | Screw Simmer Main Hd, Monogram |
|
$ 12.71 | ||||||
| WG02F00998 | Maintop Graphics Asm 36 |
|
$ 309.96 | ||||||
| WG02A00010 | Bracket Light, Monogram |
|
$ 54.47 | ||||||
| WG02F01108 | Module Spark, Monogram |
|
$ 225.95 | ||||||
| WG02F11447 | Switch Harness, Monogram (Replaces: WG02F01542) |
|
Immediately | $ 100.83 |
